Description

CARGO CAPACITIES
Deadweight : 3692.93 T
Deck Strength : 15T/sq.m
Clear Deck Area : 1000 Sq.Mtr (approx)
Fuel Oil : 755 MT (approx)
Fresh Water : 877.76 MT (approx)
Ballast Water : 3382.5 M3
Freezer / Chiller : 2 x 25.54 M3
Seawage Tank : 52.59 T
Dirty Oil : 18.93 T

MACHINERY
Generator : 3 x 400 kw @1500 rpm, Cummins Chongqing – Model KTA19-D-(M)
Alternator : 500kVA, 0.8pf, 400kW, 400V, 50Hz
Emergency : 1 x 108 hp Cummins Marine – Model
Generator 6CT8.3 – GM115
123.75 kVA, 0.8pf, 99kW, 400V, 50Hz

DECK EQUIPMENT
8-point Mooring : 4 x Diesel driven drum waterfall winch (TITAN)
16 vertical sheaves & 8 fairleaders
Drum Cap 1200m (L) x 40mm (Ø)SWR
16 vertical sheaves & 8 fairleaders
Brake Capacity : 224 kN
Anchor Wire : 9 x 1200 m (L) x 38 mm (Ø),
6*36WS+IWR-40 Galvanized –
Weight in Air 705 kg/100 mtrs)
Anchors : 10 x 5000 kg Flipper Delta Anchors
Suitcase Buoy : 10 x 2.5m (L) x 1.88m (Ø), Buoyancy 5.0 mt
Capstan Winch : 4 x 10 mt, Electric Drive
Pedestal Crane : Favco Model 15/10K,
Max. SWL : 70T @6.8m Rds,
Boom Length : 45.8 Mtrs
Deck Lighting : 16 pcs (1000/800 & 400 Watt)
Rescue Boat : 1 (SCM12-3,5R, Winch 04 – 03E)
w/ Davits (Max SWL 10 kn, Testload Stastic 22kn)
Gang Way : 3 Parts : 21m x 8m x 4m
Garbage Bin : 2Pcs : 2m x 2m x 1.50m

AUXILIARY EQUIPMENT
Oil Water Separator : 1 x 1.0 m3/hr (BOSS ST107)
Sewage Treatment Plant : 1 x 150 men/day + 11 m3/day
Water Maker : 2 x 20 M3/day (Reverse Osmosis)
Bilge Holding Tank : 31.55 m3
Air Compressor : 2 x 0.7 mpa (7 bar 99 psi)

RADIO & NAVIGATION EQUIPMENT
GMDSS : Sea Area A1 + A2
SSB : 1 x Furuno FS-1570
Link Sintel – Tel Net (F.B.B): 1 x Sailor 150 Fleetbroad band
VHF Radio : 2 x Furuno FM 8800 with built-in
DSC
Navtex Receiver : 1 x Furuno NX 700
SART : 2 x Mc Murdo S4
EPIRB : 1 x Mc Murdo E5
GMDSS, VHF Radio : 3 x Mc Murdo R2
Portable Marine VHF Rdo (IS): 8 x Motorola GP-328
Radar : 1 x Furuno 1932 MK2
Echo Sounder (Color) : 1 x Furuno FCV700
GPS, GPS Compass : 1 x Furuno GP32,
1 x Navigator GP150
Weather Fax : 1 x Furuno FAX 408
AIS : 1 x Furuno FA150
Magnetic Compass : 1 x Daiko T-150B
Wind Monitor / Tracker : 1 x Young 05103-58
Air Band VHF (Hand Held) : 1 x Icom IC-A6
Helicopter Communication : 1 Set Non DF Radio
Equipment Beacon, VR-125/250
VHF Airband Transceiver : 1 x IC-A110
VSAT COMTECH CDM 570L: 1 unit
________________________________________________
Barge also fitted with Vingtor PA Talkbalk System and Sound
Powered; Telephones (22 lines); Batteryless Telephone
Vingtor (VSP-213-L) 6 lines

FIRE FIGHTING & SURVIVAL EQUIPMENT
Ballast/Bilge/GS : 2 x 100 m3/hr @ 60m/head
100m3
Fire Pump (Main Fire Pump): 1 x 150 m3/hr @ 600m/head
Life Rafts : 12 x 25 men SOLAS Approved
Sprinkler Jockey Pump : 1 x 3 m3/hr @ 112m/head
Rescue Boat : 1 x 6 persons with outboard
engine driven
: as per SOLAS (RB400) approved
type 25 HP
________________________________________________
Fire Detection & Alarm System in All enclosed spaces
Fixed CO2 system generator room, paint store, pump room
Fixed automatic water Sprinkler system for whole
accomodation spaces

OTHER FACILITIES
Hospital : 1 x double berth hospital with attached
paramedic room
Galley : 1 w/ cooking utensils, refrigerators etc.
(Prov' 25.54M2/Freezer 25.54 & Chiller
25.54M3)
Messroom : Level 1 (64 M2) Seating capacity men
Woode Area : 38m x 16m = 600m
Offices : 2 Rooms on Main Deck
Conference Room: 1 with seating capacity for 18 men
(LAN-Type A available)
Others : 1 x Prayer Room
1 x Laundry/Drying Room
1 x Dry Provision Room
1 x Winch Control Room
1 x Barge Radio Room
Winch Control Room: 1 c/w VHF/SSB & CCTV system for winches
Gym Room : 1 on Main Deck fitted with 5 sets Gym Equipments
Changing Room : 1 on Main Deck w/ 150 locker
Work Shop : 1 on Main Deck c/w Lathe, Drill, Grinder,
2 Welding Machines, Electric Saw
2 Air Compressor (3 bar), Thread Machine
Helideck : Designed to suit Sikorky-61 or equil.
(Deck strength 9.3 T/22.2 Sq.M)

CONSUMPTION :
2 Gen Running : 4 M3
3 Gen Running : 7 M3

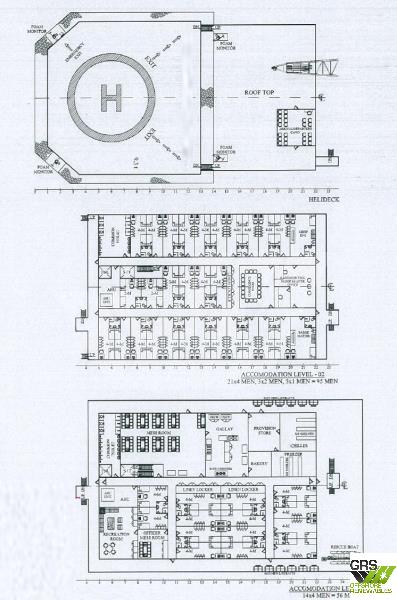

ACCOMMODATION
Single berth : 5 x 1 berth (5 men)
Double berth : 3 x 2 berth (6 men)
Four (4) men berth: 35 x 4 berth (140 men)
Total : 151 men
All cabins fully air-conditioned
(AHU Central Air Cond' System on M”DK, Level 1, Level 2)

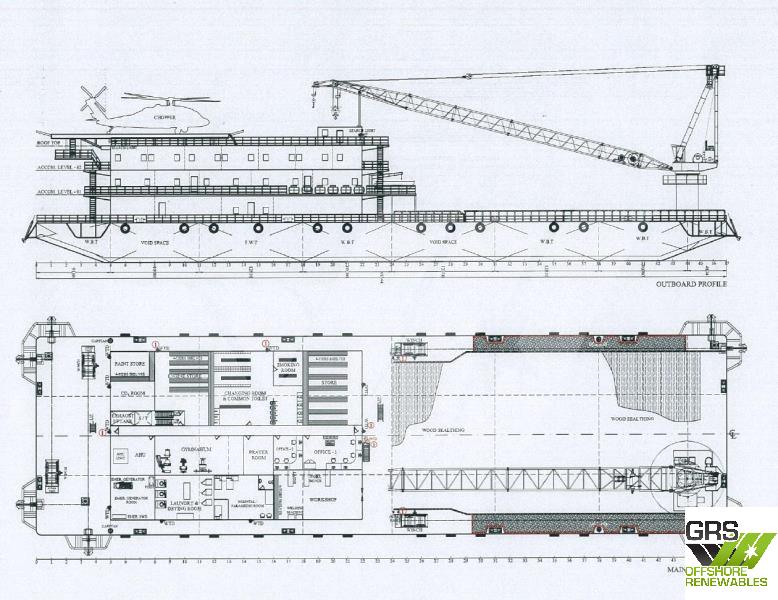

LOA 85,34 m
Beam 24,38 m
Draft 3,4 m

Total 151 berths

1 Deck

Built in year 2009
Class : Biro Klasifikasi Indonesia
Flag : Indonesia
Gross Tonnage of 4.486 and Nett Tonnage of 1.345

Free Deck area about 1.000m² with a deck strength of 15 metric tonnes per square meter
Heli Deck installed
8-Point installed
1 Crane / Gear installed with a max lifting capacity of 70 tons

Engines : Unknown Builder
Auxiliaries Engines : 3 Cummins 390 kw
