Description

Max. Submerged Draft : Approx 20.0m
Max. Submersion : 9.50 m above Main Deck

Equipped With:
- Remote Trim/Heel/Draft Indicators
- Dual sensor remote sounding system on all ballast tanks
- Dual ballast system control consoles at Deck House and Pump Room
- Equipped with dual loading computers
- Designed for jacket launching up to 14000 MT
- Capable of full flat top configuration for large jackets and deck cargo with ballast system control in Pump Room
- Removable Stern Caissons & Starboard Caisson
- 4 points mooring system
- 1 x Conference room
- 1 x Resting room
- 1 x Toilet and Shower facility
Vessel ideally Suited For:

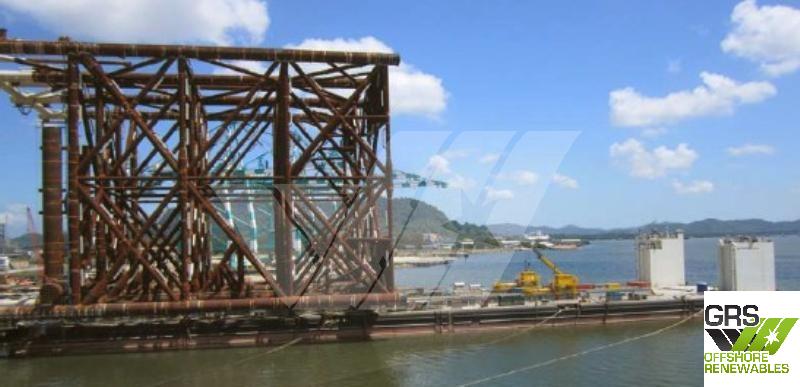

- Transportation and float over of Offshore Modules, Jackets, Decks, Topsides, Structures, etc
- Transportation of all types of floating units Rigs, Dredgers, Pontoons, Ferries, Vessels, River Barges, Tugs, Work Boats, etc.
- Transportation of port equipment RMQCs, RTGs, CSUs, etc.
- Dry Docking of Rigs, Dredgers, Tugs and Barges in Remote Areas
- Precise Positioning, with regard to Heel & Angle underneath the Cargo
LOA 150 m
Beam 40 m
Draft 7,5 m

Built in year 2012
Class : American Bureau of Shipping
Flag : Tuvalu
Gross Tonnage of 18.060 and Nett Tonnage of 5.418

Deadweight : 30.669 metric tonnes
Free Deck area about 5.700m² with a deck strength of 25 metric tonnes per square meter
4-Point installed

Specifications

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network
