Description

OUTFITTING

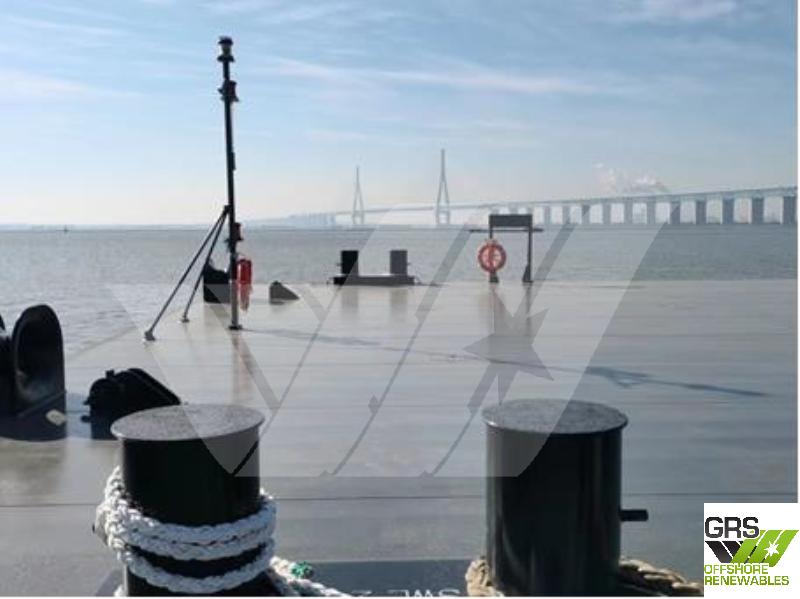

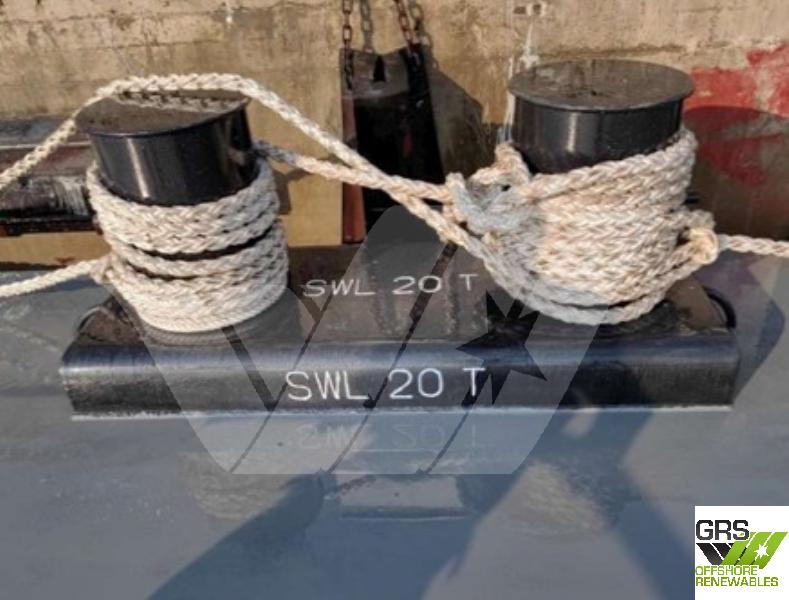

Bollards: 6 double bit bollard 20 MT
Masts: Fore- and aft mast
Light stands: PS and SB light stand
Boarding ladders: PS and SB at aftship
Manholes: Flush single point opening

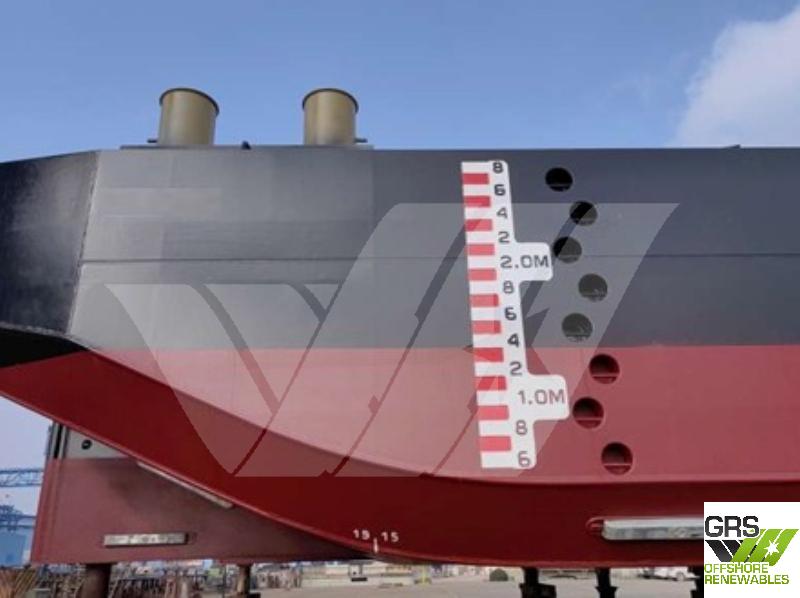

Draft marks: PS and SB at fore- and aftship
Deck marks: Every webframe

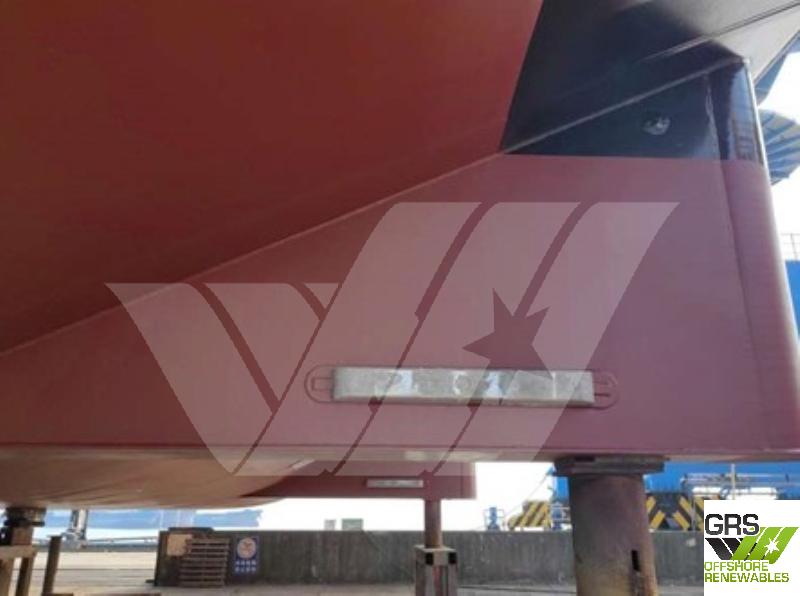

Cathodic protection: Zinc anodes
Lifting eyes: 4 × 200 MT lifting eyes
Container fittings: Base plates for 4 × 20' container
Spud cans: 3 Spud canes (2 at PS, 1 at SB)
Spud poles: 2 Spud poles of 23 mtr / dia 914 mm
Spud carrier: 1 carriage frame for 2 spud poles
Tow brackets: 2 pcs 100 MT brackets at bow
Fairleads: 2 pcs fairlead at bow, in way of Tow Brackets
Mooring lines: 4 mooring lines
Life saving: 4 life buoys with line
LOA 50 m
Beam 18,8 m
Draft 2,45 m

Built in year 2024
Class : American Bureau of Shipping
Flag : Great Britain

Deadweight : 1.597 metric tonnes

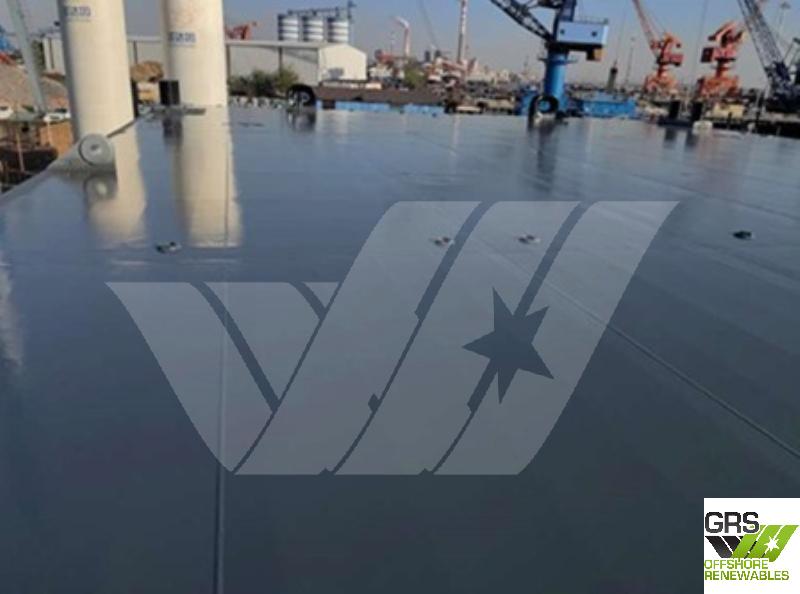

Free Deck area about 920m² with a deck strength of 20 metric tonnes per square meter

Specifications

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network
