Video

Description

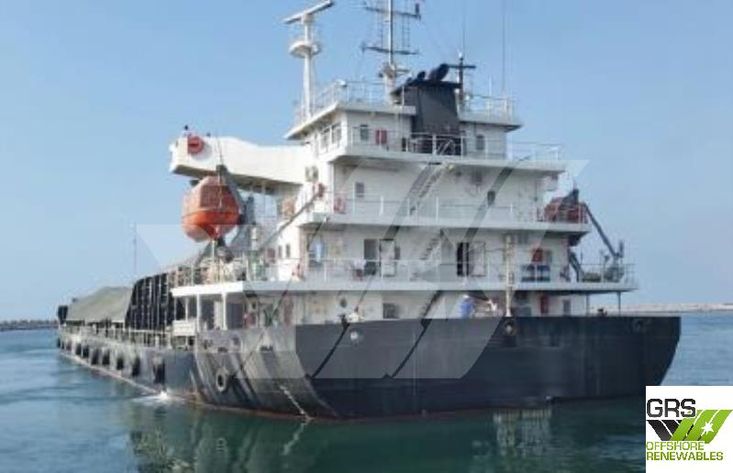

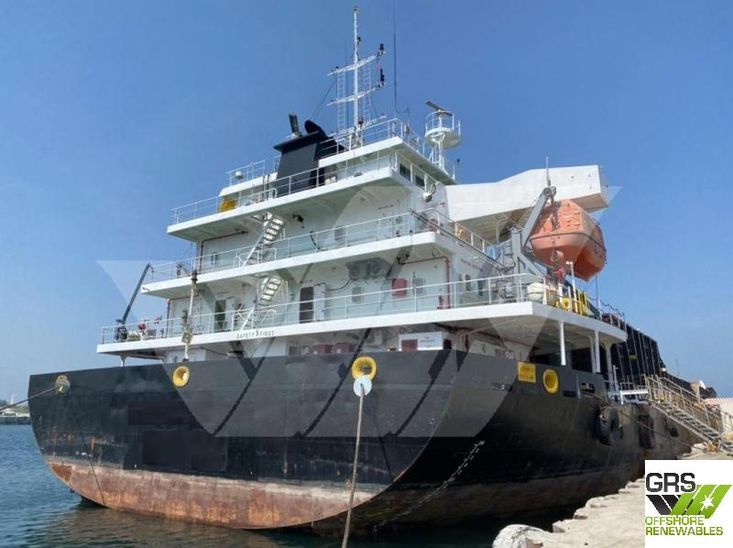

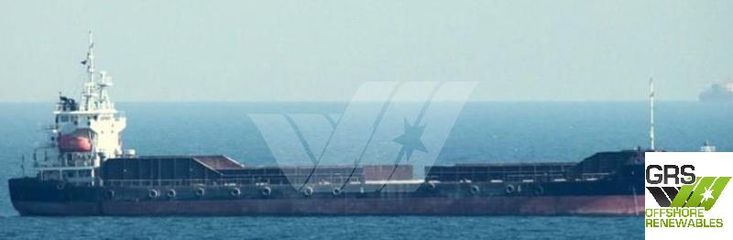

10,500DWT– Self Propeller Deck Ship
CLASS – KR
FLAG – Marshall Island
BUILT Yangzhou, China 2012

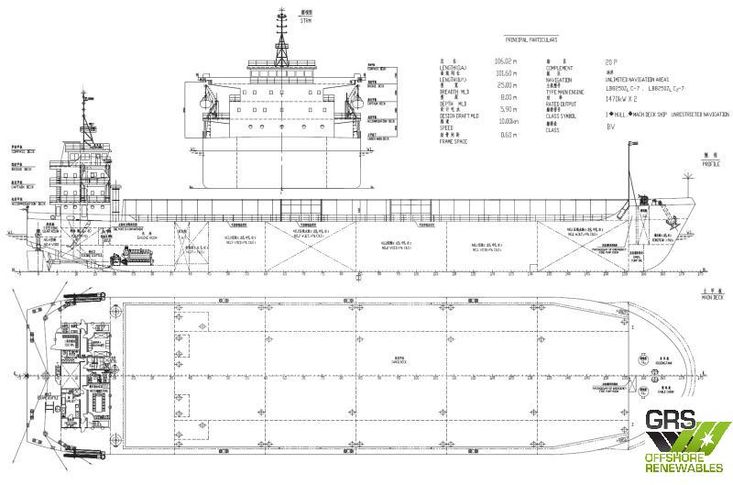

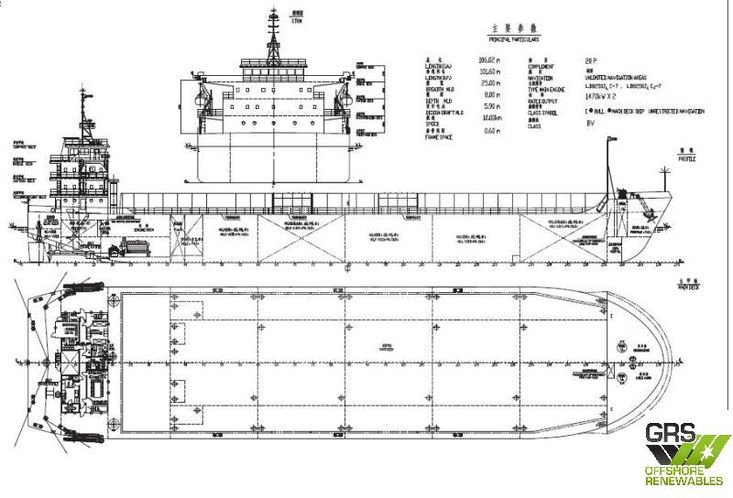

MAIN PARTICULARS
LOA: 106.02M
Breadth (MID): 25.00M
PROPULSION & GENERATION Depth (MID): 8.00M
Engines: 2 x ZIBO LB8250 of 1470 KW each @ 750 rpm
Summer Draft: 5.90M
BHP: 4,000 BHP
Deck Space: 1491.6m2
Gearboxes: 2 x GWC45.49 Reduction Gear boxes of 3.9474:1 ratio
Generators: 2 x Cummins CCFJ200J-W 200KW@1500rpm
GRT: 5770 MT
E.Generator:1 x Cummins CCFJ64Y-W 64kw 400 V/3phase/50 HZ
Deck Load: 10 MT/SQM
DWT: 10,500 T

ENGINE ROOM MACHINERY
F.W. Pump: 1 x 2.2.kw /0.4 MPa
S.W. Pump: 2 x ESNN-100M- 45
Bilge/Ballast Pump: 2 x (415m3 /hr x
: 2.7kg/cm2x55kwx1450 rpm

CREW 16 Person

PERFOMANCE
Operation Speed: 8.5 ~ 9.5 Knots
Type of Fuel : IFO 120cst for M/E
LSMGO for G/E
Daily Consumption: Abt. 10mt for ME
Abt. 0.5mt for G/E

TANK CAPACITIES
H.F: 219.2.7M3
F.W.: 134.6 M3
BALLAST: 5,307.2 M3
L.O: 9.1 M3
LOA 106.02 m
Beam 25 m
Draft 5.9 m

Built in year 2012
Class : Korean Register of Shipping
Flag : Marshall Islands
Gross Tonnage of 5,770 and Nett Tonnage of 1,731

Deadweight : 10,565 metric tonnes

Speed : 10 knots
Engines : 2 x Chinese Std. Type / Qingdao Zichai Boyang Diesel LB8250ZLC, 2,942 kw, 750 rpm, Propellers 1 Fixed Pitch (Center)
Auxiliaries Engines : 2 Cummins 240 kw

1 Deck

Specifications

Engine(s)

2 x 2,942 kw, 750 rpm, Chinese Std. Type / Qingdao Zichai Boyang Diesel LB8250ZLC,
Propellers: 1 Fixed Pitch (Center)

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network
