Description

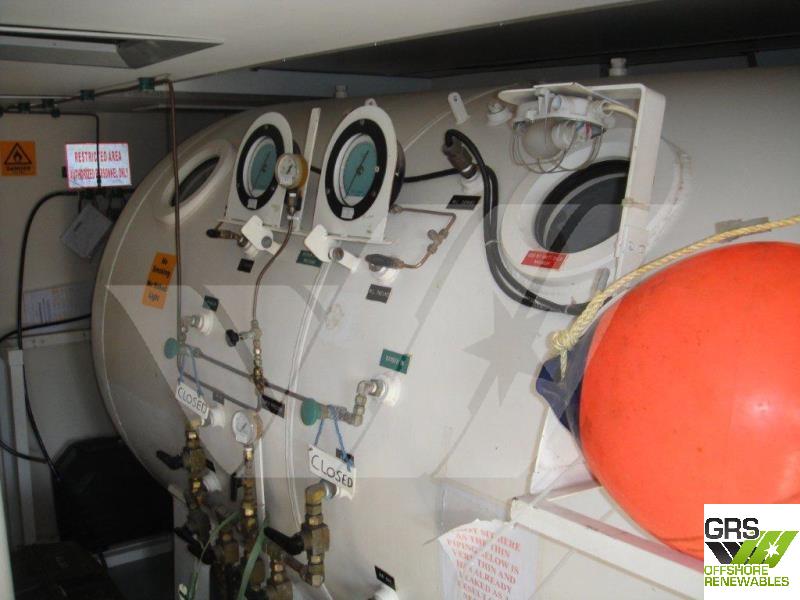

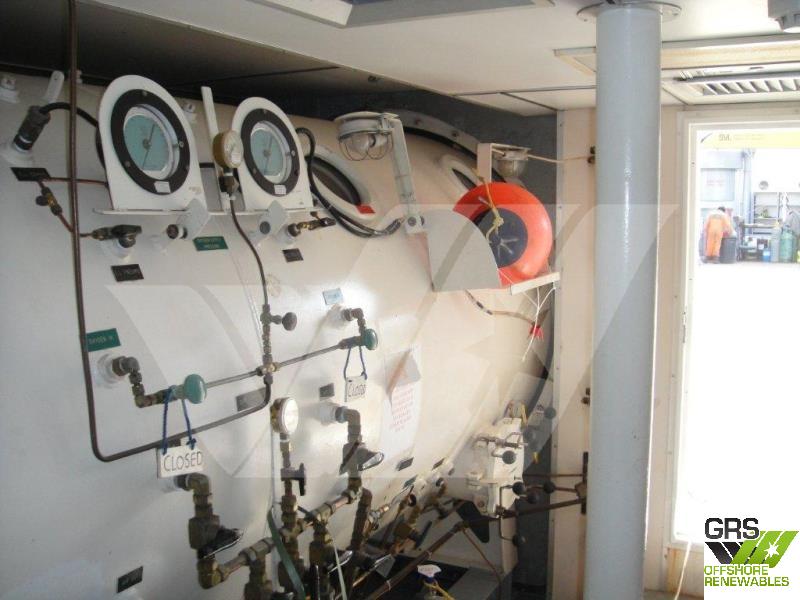

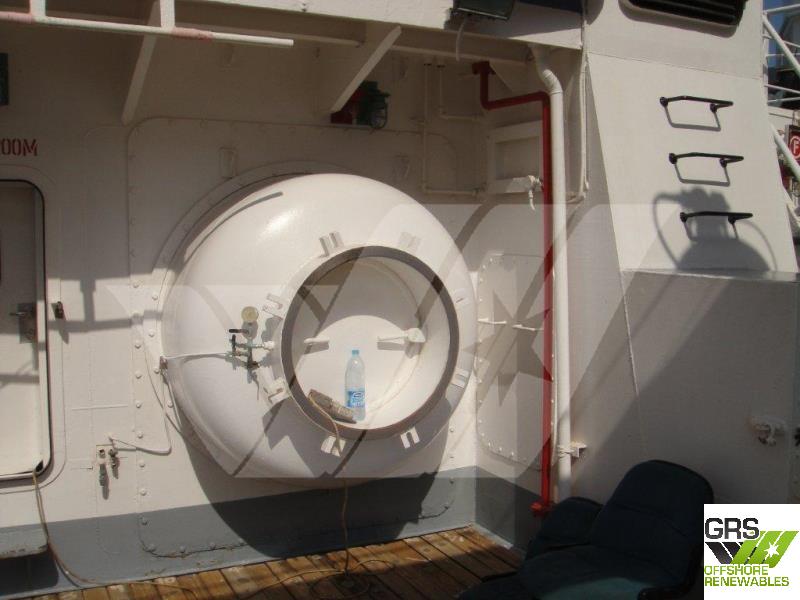

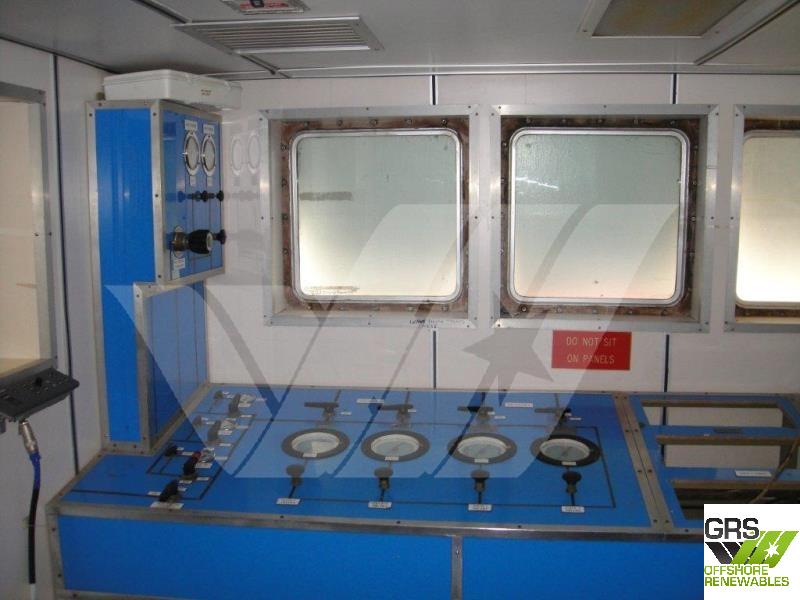

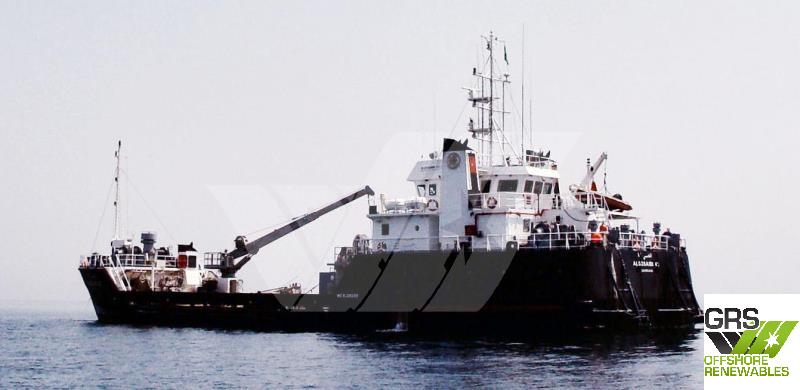

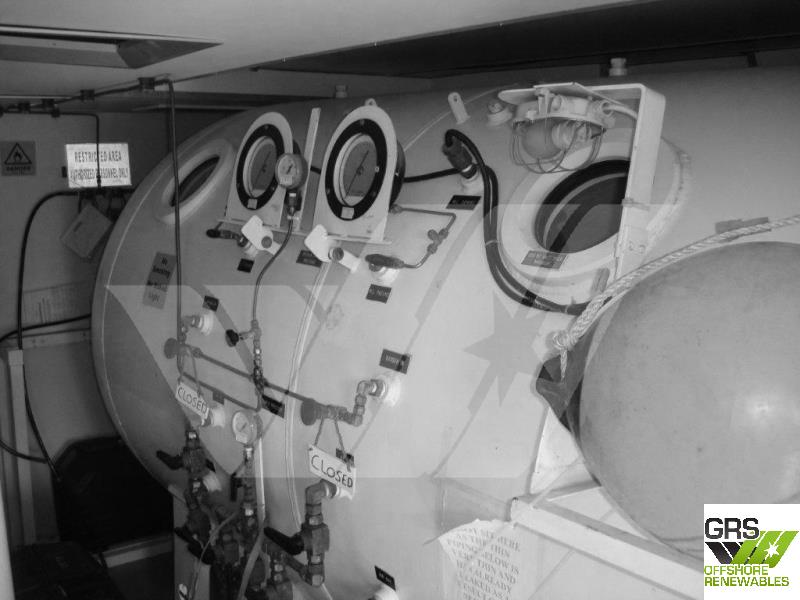

THE VESSEL WAS SPECIALLY BUILT TO PROVIDE EFFICIENT AND SAFE DIVING SUPPORT IN RESPECT OF OFFSHORE OILFIELD MAINTENANCE AND CONSTRUCTION ACTIVITIES IN SHALLOW WATERS AND IS EQUIPPED WITH A FULLY INTEGRATED DIVING SUPPORT SYSTEM, WITH DECK DECOMPRESSION CHAMBER, DIVING COMPRESSORS, AIR/GAS STORAGE AND DIVE CONTROL FACILITIES.

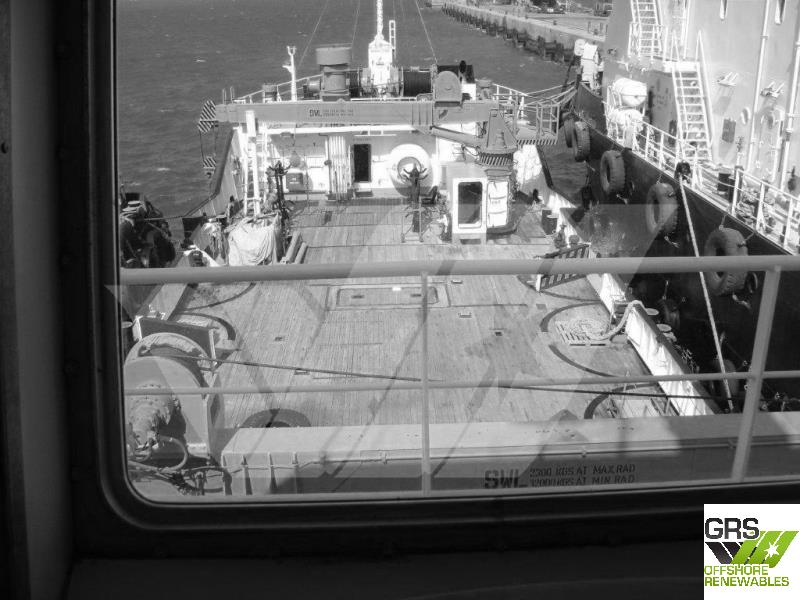

THE VESSEL IS ARRANGED WITH THE ACCOMMODATION BLOCK AFT, A FORECASTLE DECK CONTAINING THE DIVE CONTROL AND DECOMPRESSION CHAMBER ROOMS, AND A CENTRAL WORKING DECK.
LOA 53 m
Beam 12,5 m
Draft 1,85 m

Built in year 1997
Class : American Bureau of Shipping
Flag : [Unknown]
Gross Tonnage of 795 and Nett Tonnage of 238

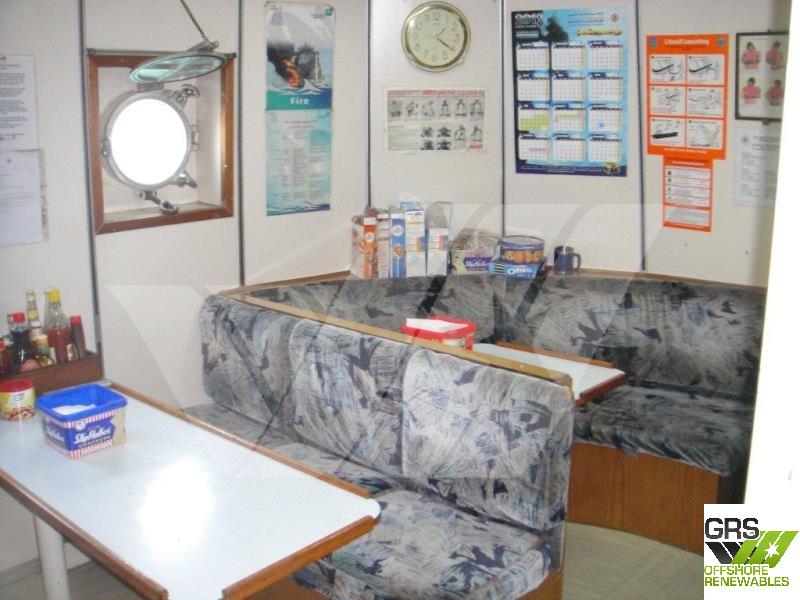

Total 28 berths
5 cabins with 1 berth
1 cabin with 2 berths
1 cabin with 1 berth
4 cabins with 2 berths
3 cabins with 4 berths

4-Point installed

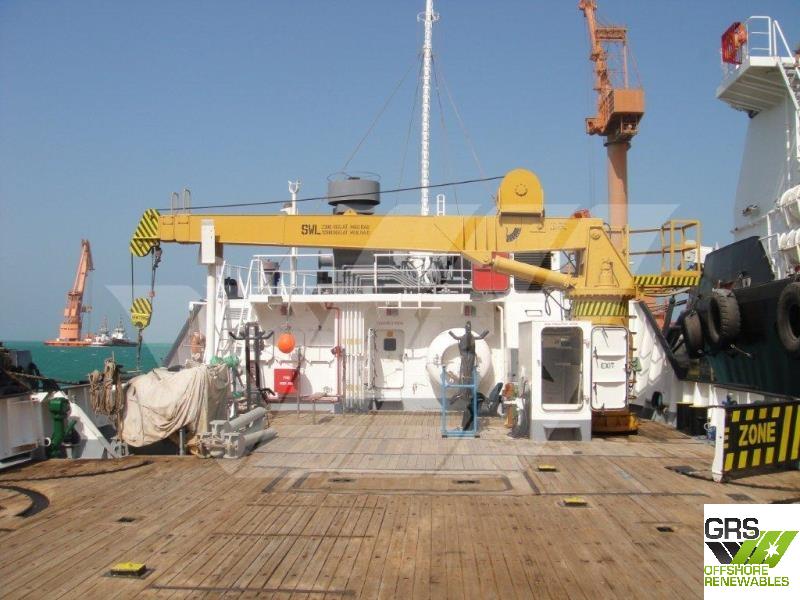

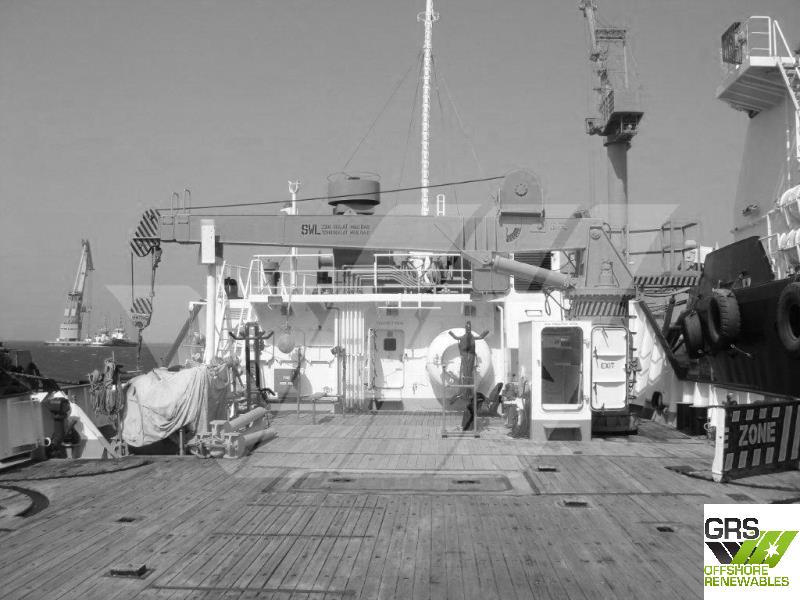

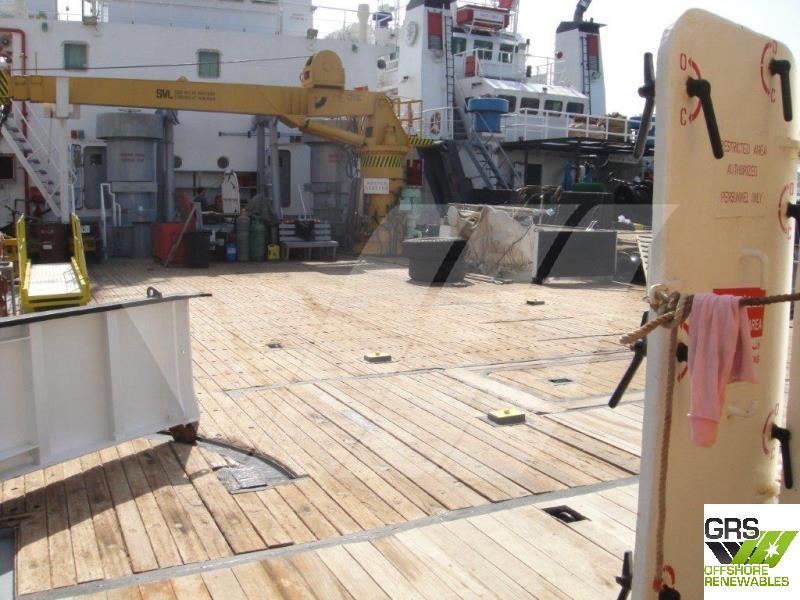

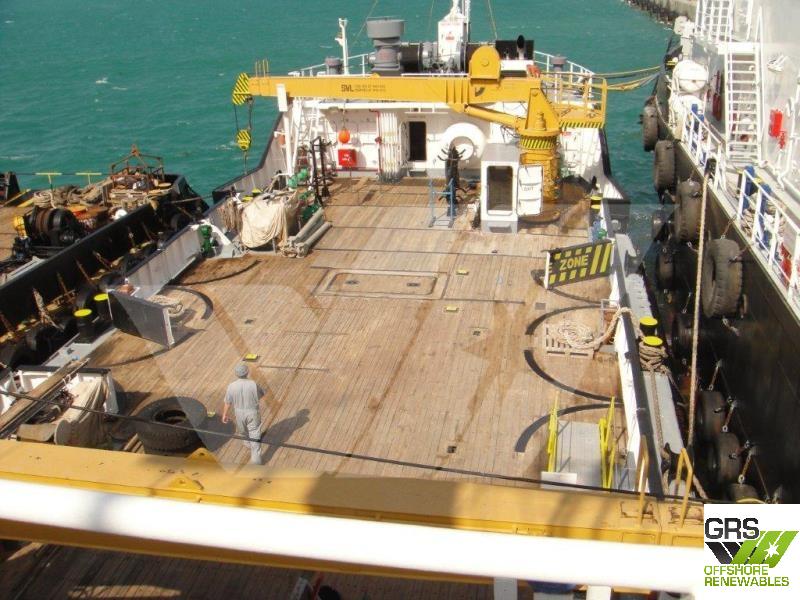

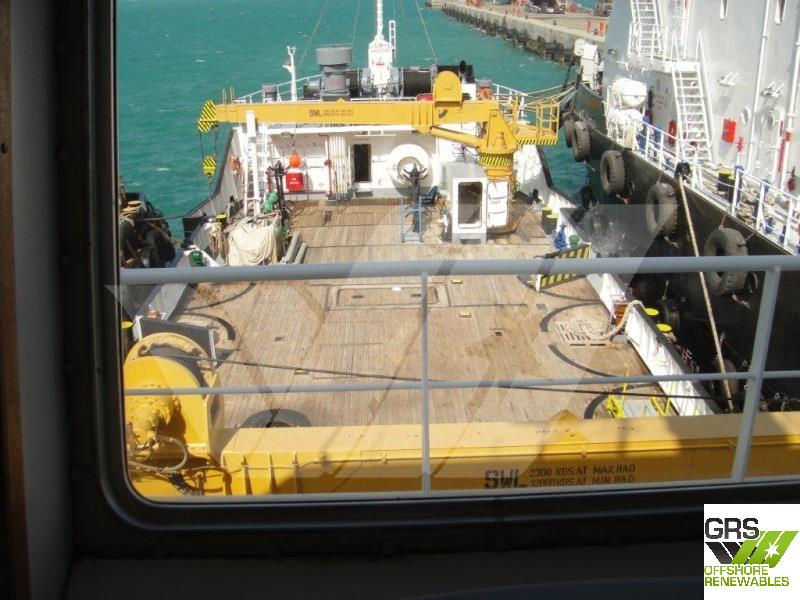

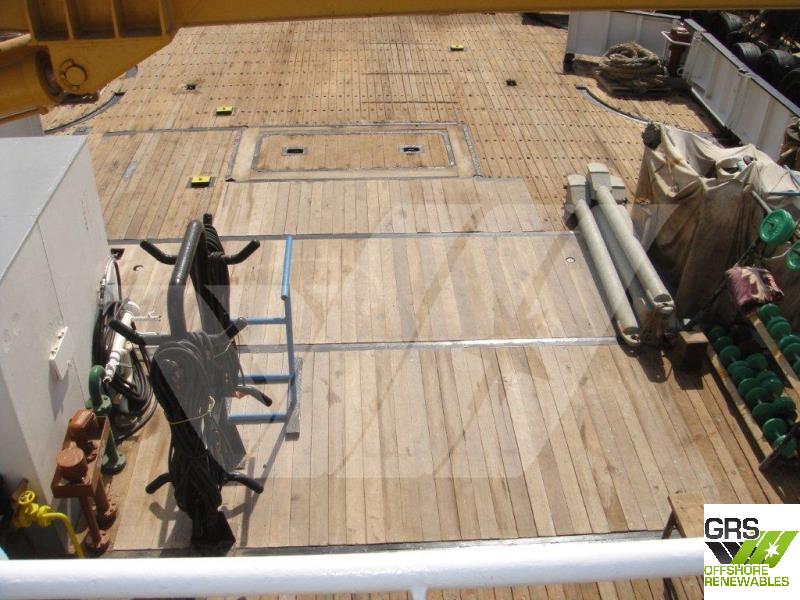

Free Deck area about 260m² with a deck strength of 5 metric tonnes per square meter
2 PED installed with a max lifting capacity of 12 tons

Deadweight : 271 metric tonnes
Fire Fighting System installed

Speed : 9 knots
Engines : 2 x Caterpillar / Caterpillar Inc 3412TA, 956 kw, 1.800 rpm, Propellers 1 Fixed Pitch (Port Side) + 1 Fixed Pitch (Starboard)
Auxiliaries Engines : Bowthruster + No Sternthruster (1 Bow Thwart. FP thruster Schottel SOJ 132 T PUmp Jet)

Capable of supplies of 130.000m³ Fuel Oils and 240.000m³ FW

Specifications

Engine(s)

2 x 956 kw, 1.800 rpm, Caterpillar / Caterpillar Inc 3412TA,
Propellers: 1 Fixed Pitch (Port Side) + 1 Fixed Pitch (Starboard)

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network
