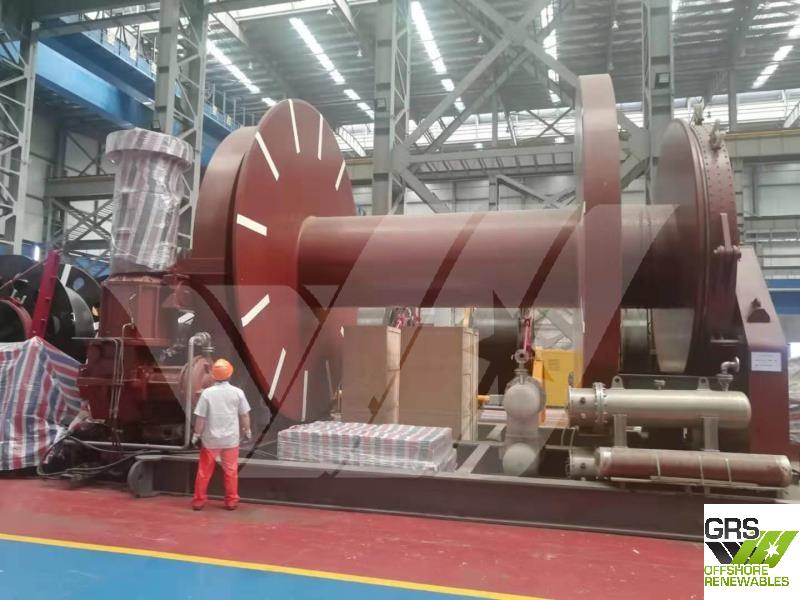

170 ton at first layer, speed 0 –20 m/min
60 ton at last layer, speed 0 –40 m/min
Capacity: 1800m 8” rope or 7000m 3”steel wire
Water cooled brake resistors
Wire/Rope spooling device
Motor Control and local Control Panel (radio)
Remote Control Console
Low voltage VFD Single drive system
Recommended spare parts for five year operation
HPU Electric motors: 2 x ABB/Siemens/ Franz Wolfer/VEM
350KW per unit, heater build-in motor
IP56, S1 continuous duty, insulation class F
Electrical general: Ambient temp. 50 deg C
Winch Band Brake: Hydraulic set on drum flange with stainless steel(AISI 316L) lining of min 5 mm thickness
Brake Capacity: 200ton@first layer / 80ton@last layer
Brake torque is set 50% by spring load and 50% by hydraulic
Piping: Hot dipgalvanized, under 35 mm in stainlesssteel.
Comes sandblasted and painted for marine use.
Net weight: 108.5 ton
All details given in good faith, without guarantee
LOA 1 m
Built in year 2019
Bollard Pull : 170 tons
|Length over all:||1m|
