Description

Located Singpaore / ready to be shipped.

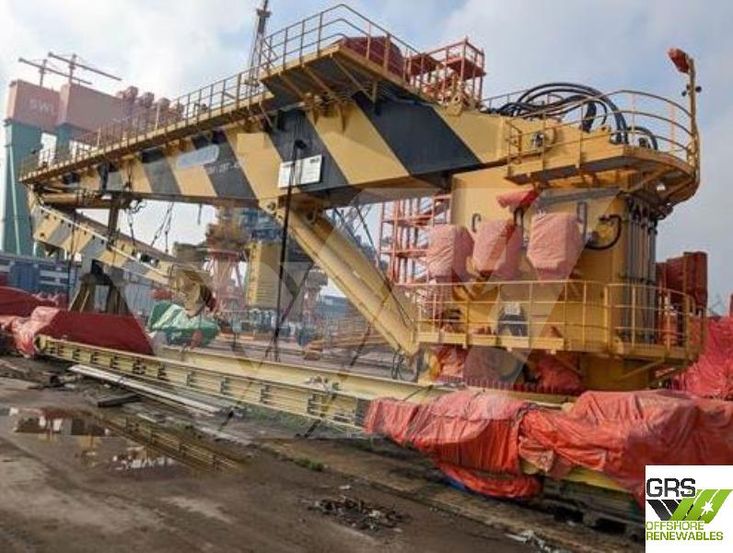

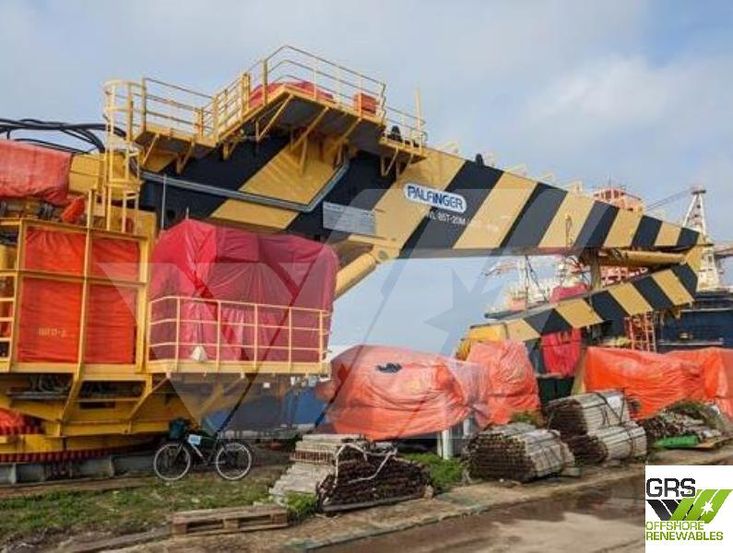

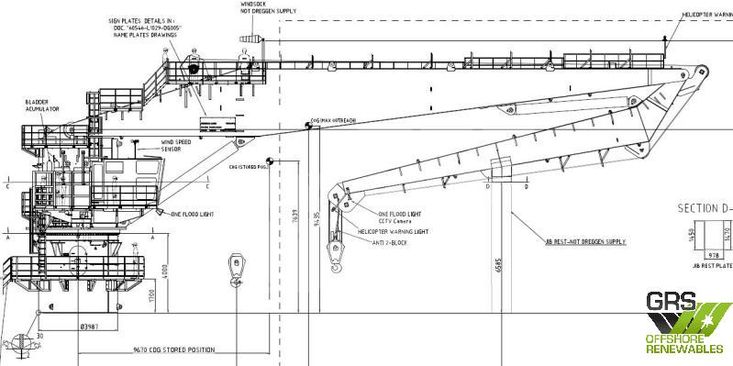

TYPE OF CRANE DKF 2000
Offshore Knuckle Boom Electro Hydraulic Pedestal Crane
PRIME MOVER Electro-Hydraulic
ENVIRONMENT High humidity
DESIGN TEMPERATURE Design temp -10°C - +40°C.
Crane design temperature is in accordance with class
requirements for worldwide service.
AREA CLASSIFICATION Crane designed for Safe Zone.
Electrical equipment on Knuckle jib and hooks: Zone 2 IIA T3.
Electrical equipment on Main boom, outer half: Zone 2 IIA T3.
CERTIFICATION
- Makers Certificate.
- ABS Certificate for complete crane.
- API monogram.
- INMETRO for Explosion proof electrical components
FEM CLASSIFICATION Machinery groups: M5 – L3 – T4
Appliance group: A5 – Q3 - U4
DESIGN RULES
- API 2C Rules for offshore crane 7th edition
- API Spec 9A
- ABS Classification of Drilling Systems 2011
- ABS Guide for Certification of Lifting Appliances

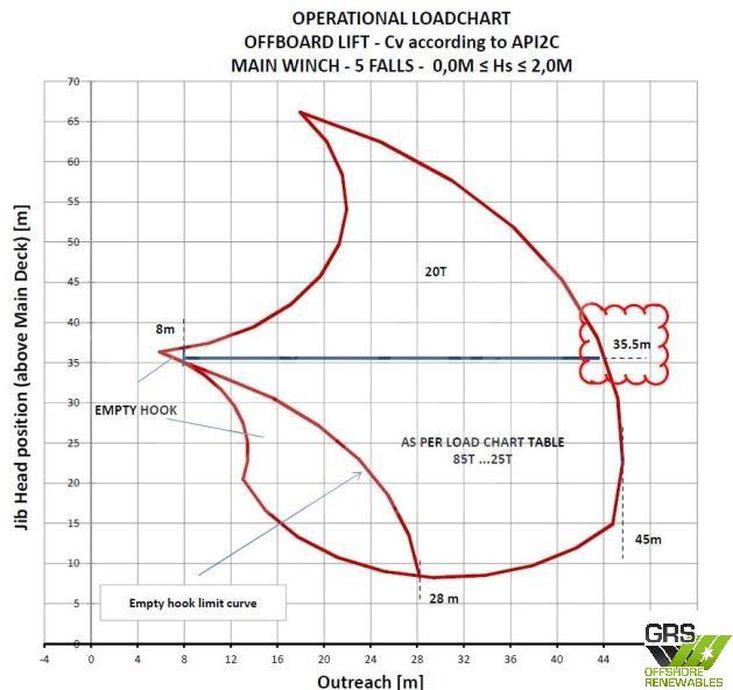

MAIN WINCH

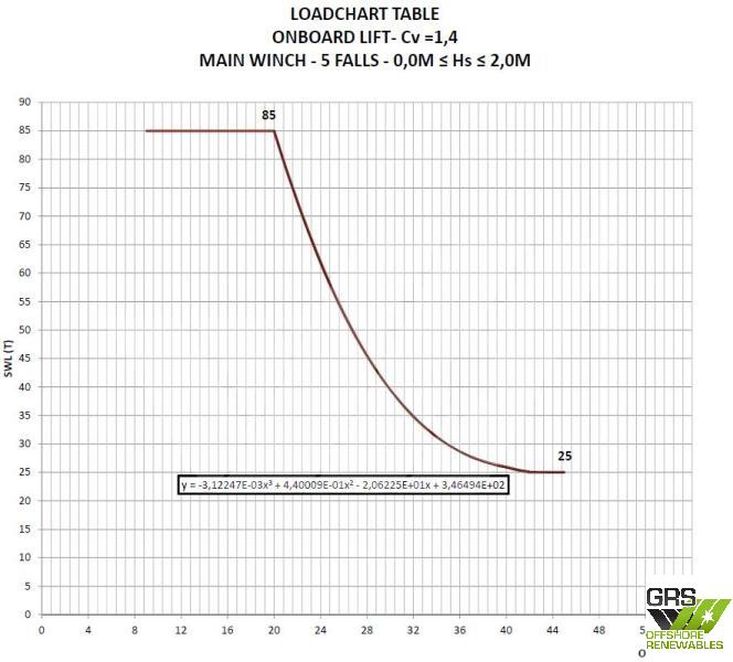

SWL at MAX OUTREACH
(ONBOARD LIFTS – Cv=1,4) 85T / 20M
SWL at MAX OUTREACH
(ONBOARD LIFTS – Cv=1,4) 25T / 45M

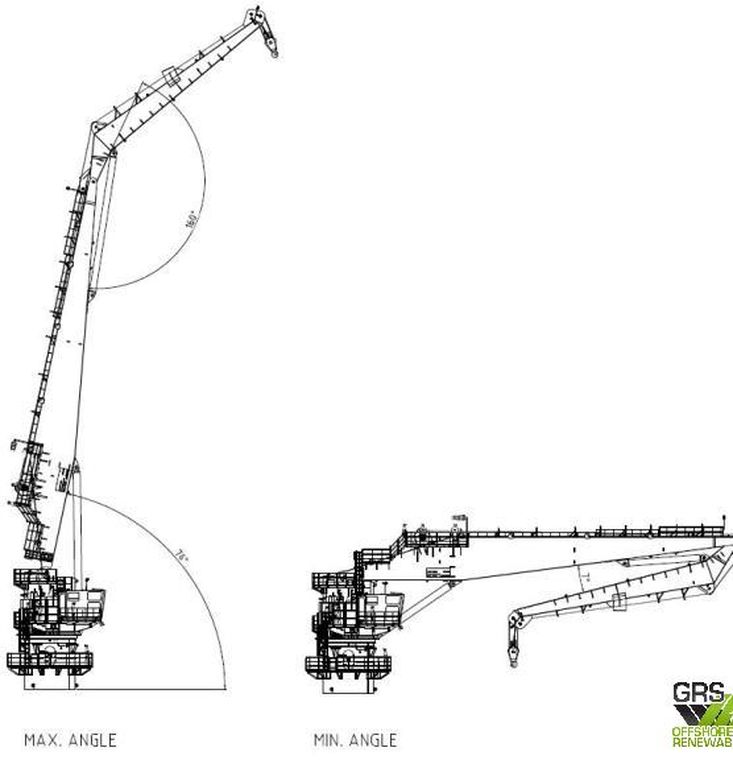

MAX OUTREACH 45M
MIN OUTREACH 8,0M

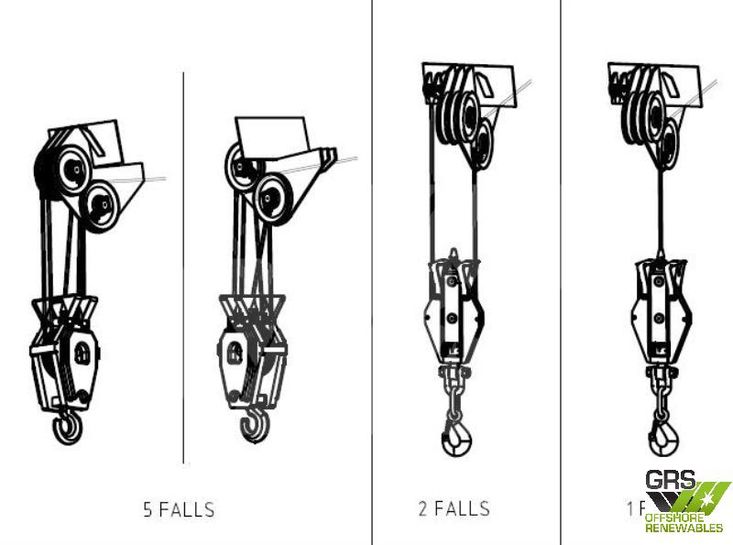

FALLS for Internal Lifts 5
FALLS for Offshore Lifts 5
HOOK TRAVEL 70 M
HOOK SPEED MAIN HOIST,
STEPLESS CONTROL
FULL LOAD 5 FALLS, 85T
EMPTY HOOK 5 FALLS
0-18 M/MIN
0-18 M/MIN
FULL LOAD 2 FALLS, 34 T
EMPTY HOOK 2 FALLS
0- 45 M/MIN
0-45 M/MIN
FULL LOAD 1 FALLS, 17T
EMPTY HOOK 1 FALLS
0- 90 M/MIN
0- 90 M/MIN

SLEWING
SLEWING SECTOR UNLIMITED
(YARD TO SUPPLY INFO) 360 DEG
SLEWING SPEED, STEPLESS
CONTROL 0-0,5 RPM

LUFFING
LUFFING TIME average up/down 180 SEC
FOLDING TIME IN (APPX) 120 SEC
FOLDING TIME OUT (APPX) 180 SEC

ELECTRIC DATA
MAIN ELECTRIC SUPPLY 440V – 60Hz – 3PH
OUTPUT POWER RATING S1-100%
2x 254 KW
INPUT POWER RATING S1-100%
2x 265,69 KW
MAX MAIN HOIST POWER: APPX 490 KW
MAX LUFFING POWER: APPX 425 KW
MAX SLEWING POWER APPX 350 KW

1 KNB installed with a max lifting capacity of 85 tons
