Description

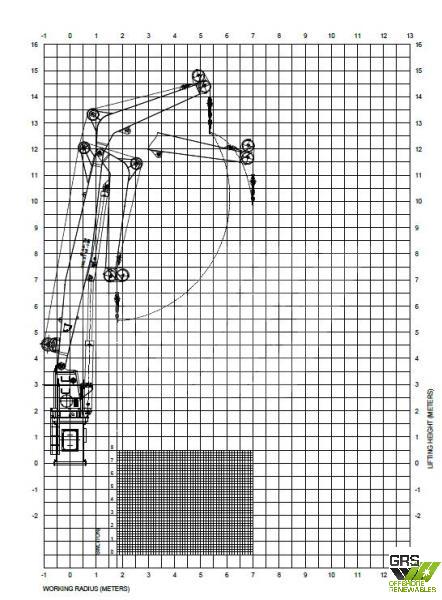

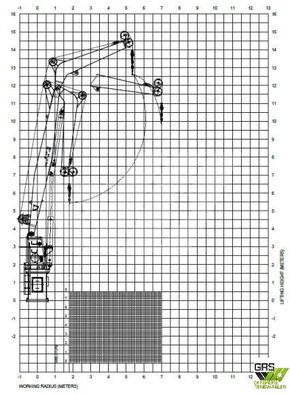

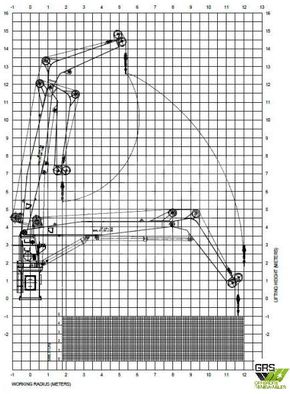

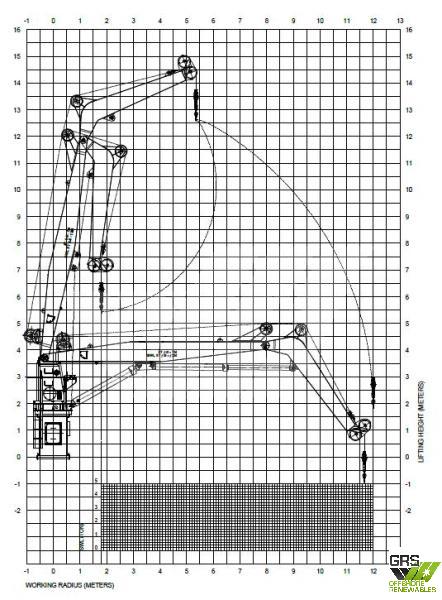

SPECIFICATION S.W.L : REF. TO SHT. 2/3~3/3 (LOAD CHART)
MAX. OUTREACH : 12 M
MIN. OUTREACH : 1.8 M
HOOK TRAVEL : 30 M
HOISTING SPEED : 0~10 M/Min With Max Load
LUFFING TIME (AVERAGE) : 30 SEC.
SLEWING SECTOR : 360° Continuously Limit switch to be installed
NUMBER OF FALLS : 2
SLEWING SPEED : 1 RPM
POWER PACK : BUILD IN
MAX. TILTING MOMENT : 127 TM
MAX. THRUST FORCE : 15.8 T
MAX. LIST/TRIM : 5/2°
LOA 14 m

1 Crane / Gear installed with a max lifting capacity of 8 tons
1 Crane / Gear installed with a max lifting capacity of 5 tons

Specifications

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network

Disclaimer

GRS performs its services exclusively on the basis of its General Terms and Conditions, which are available at the GRS website www.grs-offshore.com.
All details are given in good faith but without guarantee. Subject to availability.

Location Map
