Description

Type: High-Speed Passenger Vessel / Ferry. Flag: Belize. Class: PMDS. Built: 1995 – Australia. Rebuilt / Refurbished: 2018–2019. Hull Material: Aluminium. Designed Speed: 28.3 knots (at 75% load).

Specifications

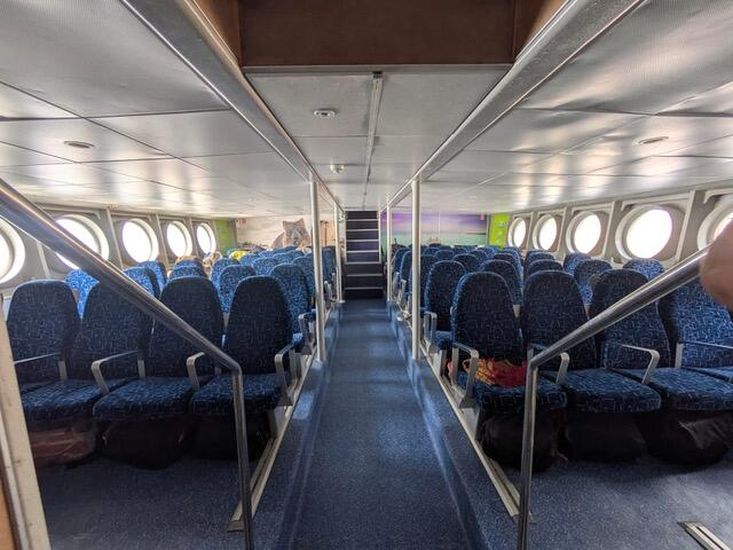

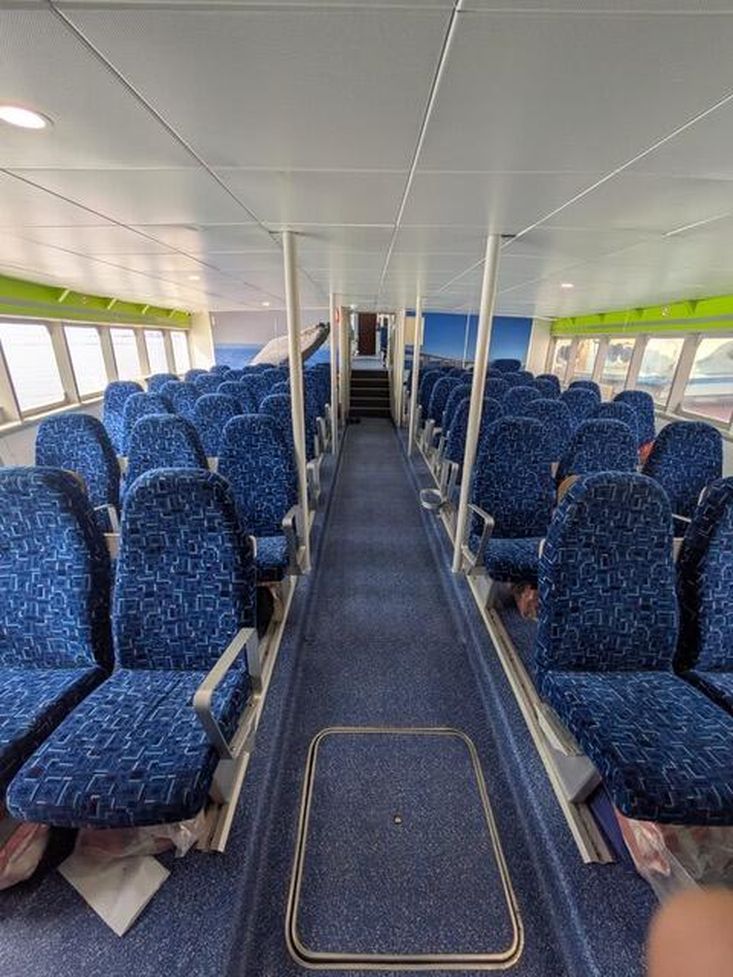

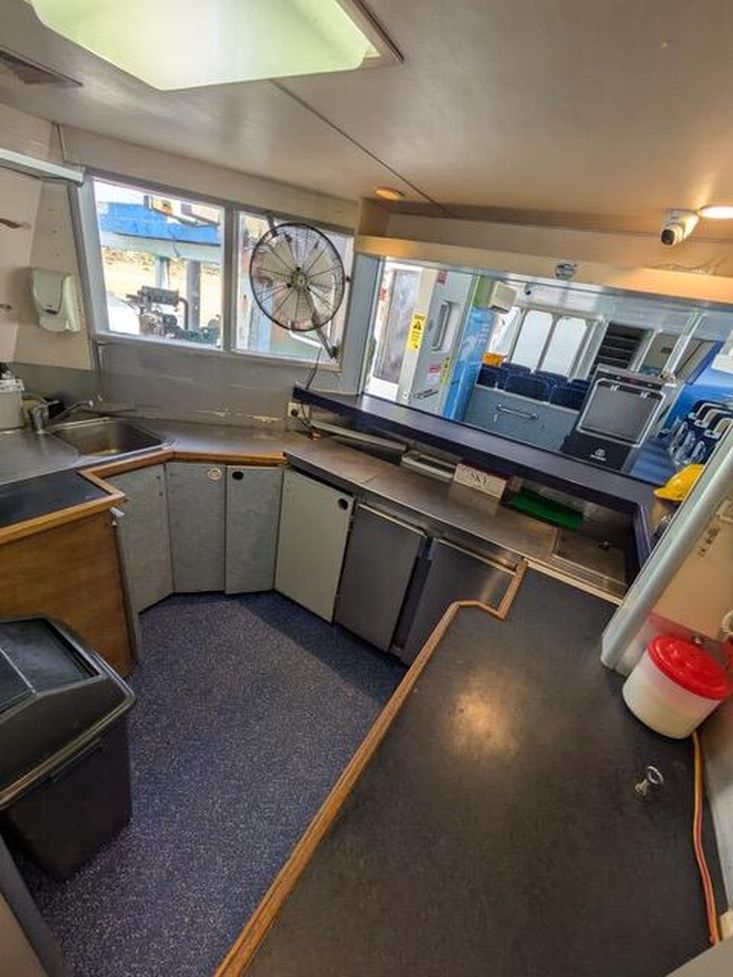

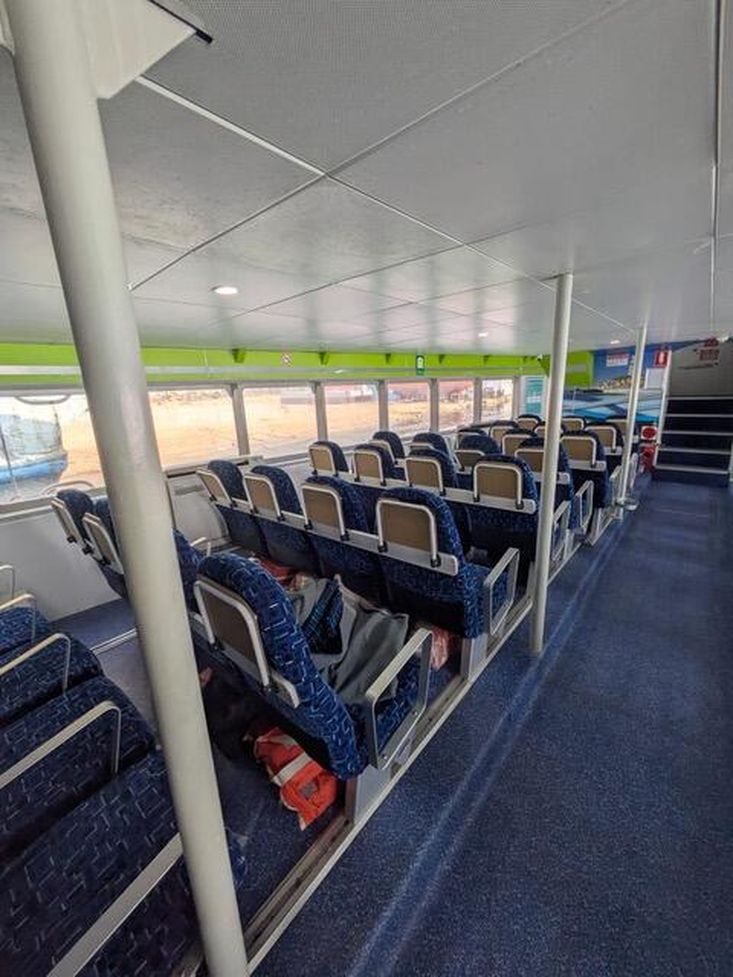

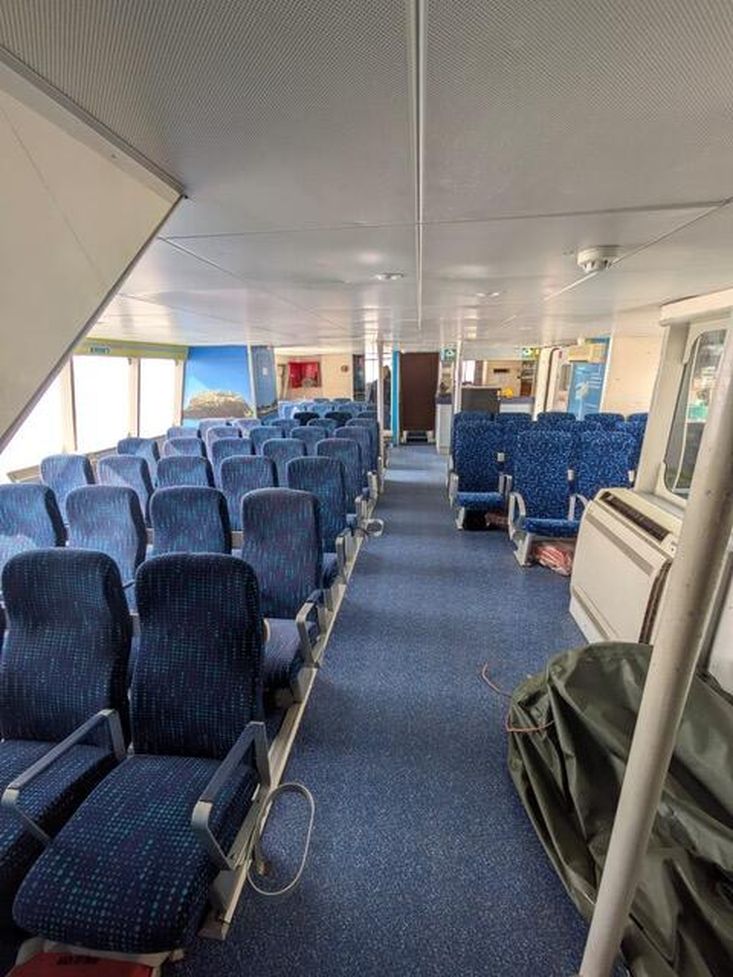

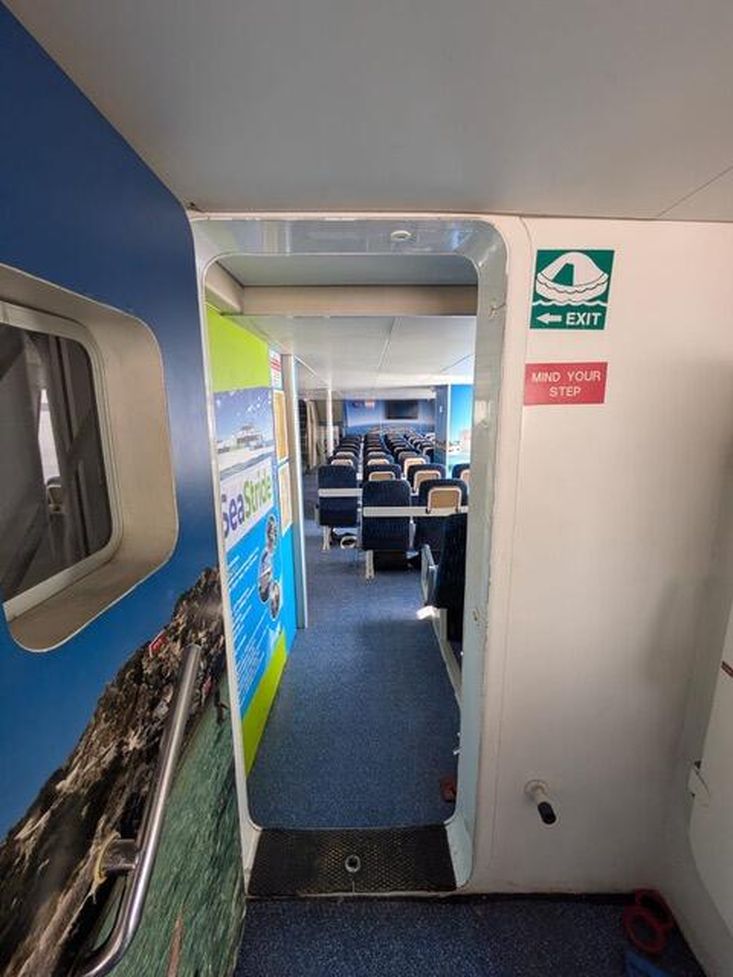

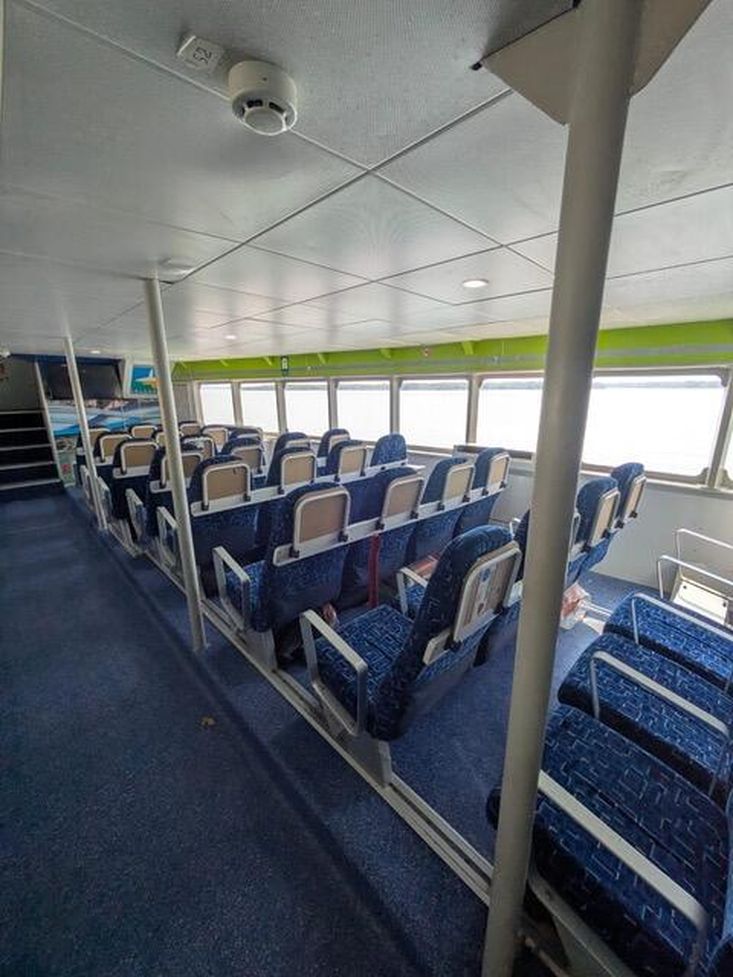

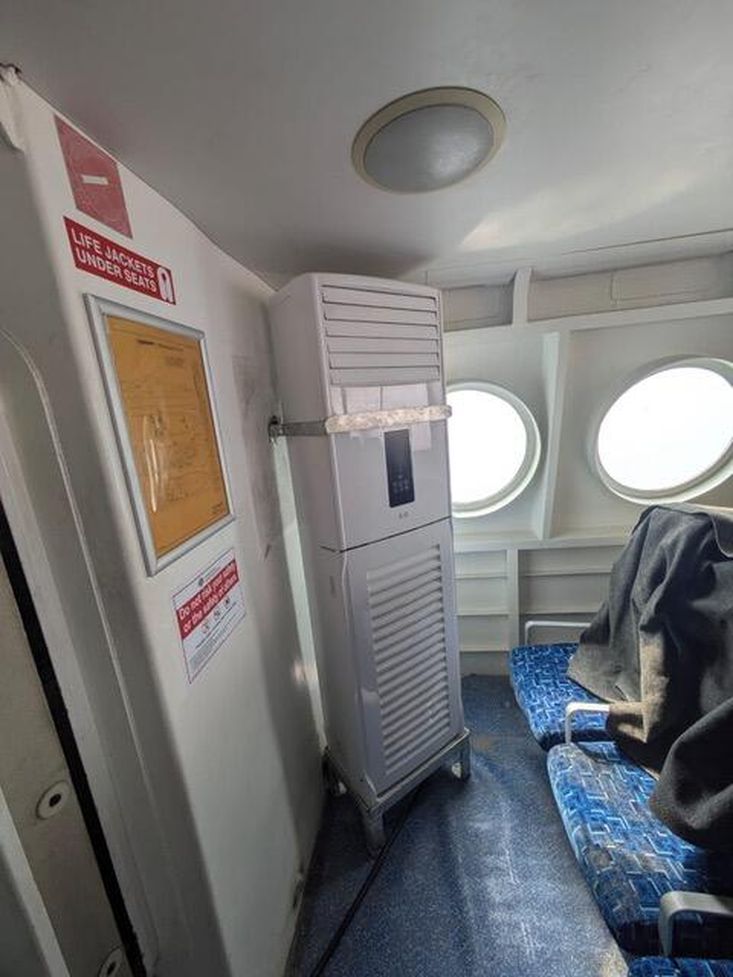

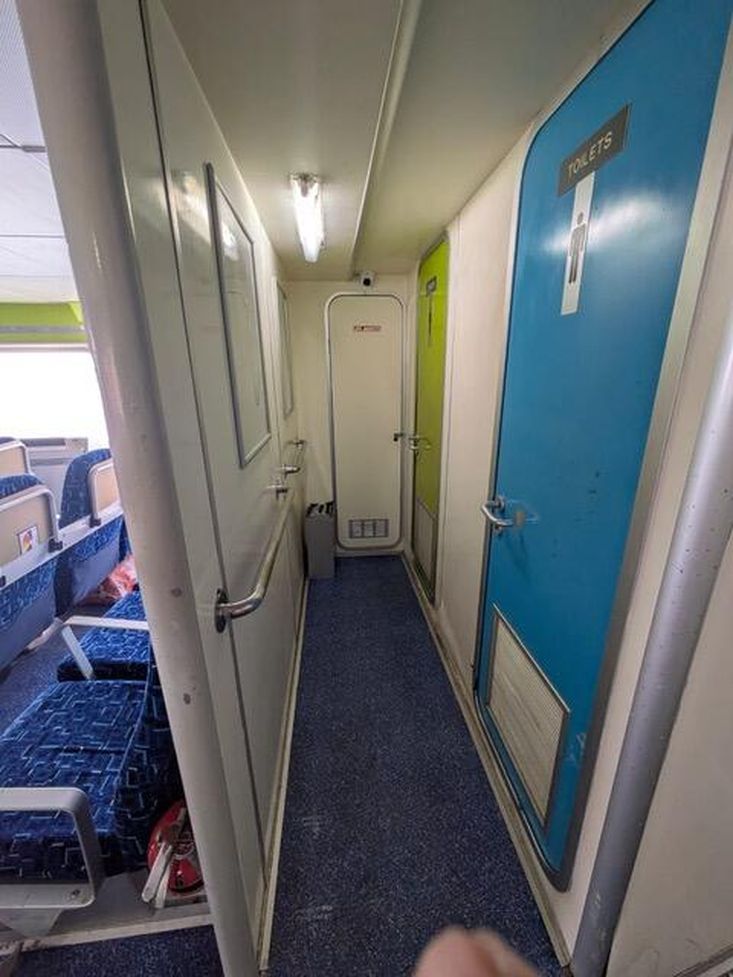

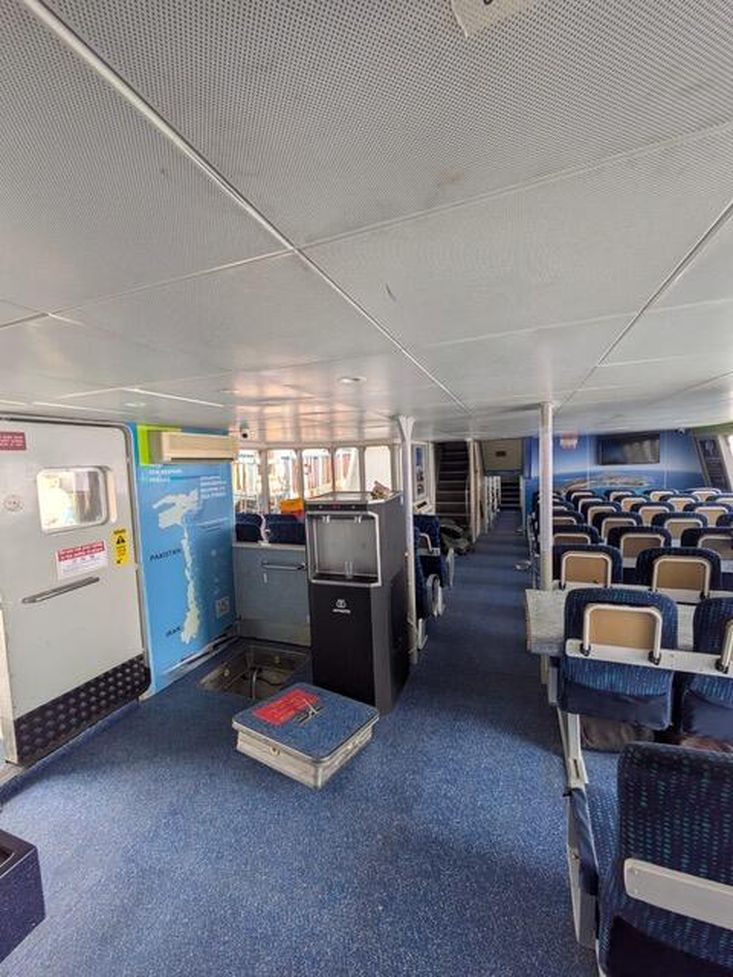

Accommodation

Construction

GENERAL SPECIFICATION
Type: High-Speed Passenger Vessel / Ferry
Flag: Belize
Class: PMDS
Built: 1995 – Australia
Rebuilt / Refurbished: 2018–2019
Hull Material: Aluminium

PRINCIPAL DIMENSIONS
Length Overall (LOA): 35.4m
Length Waterline: 31.6 m
Beam (Max): 7.3 m
Depth (Moulded): 2.85 m
Maximum Draft: 2.10 m
Air Draft: 7.30 m
Loaded Displacement: 90 T

Equipment

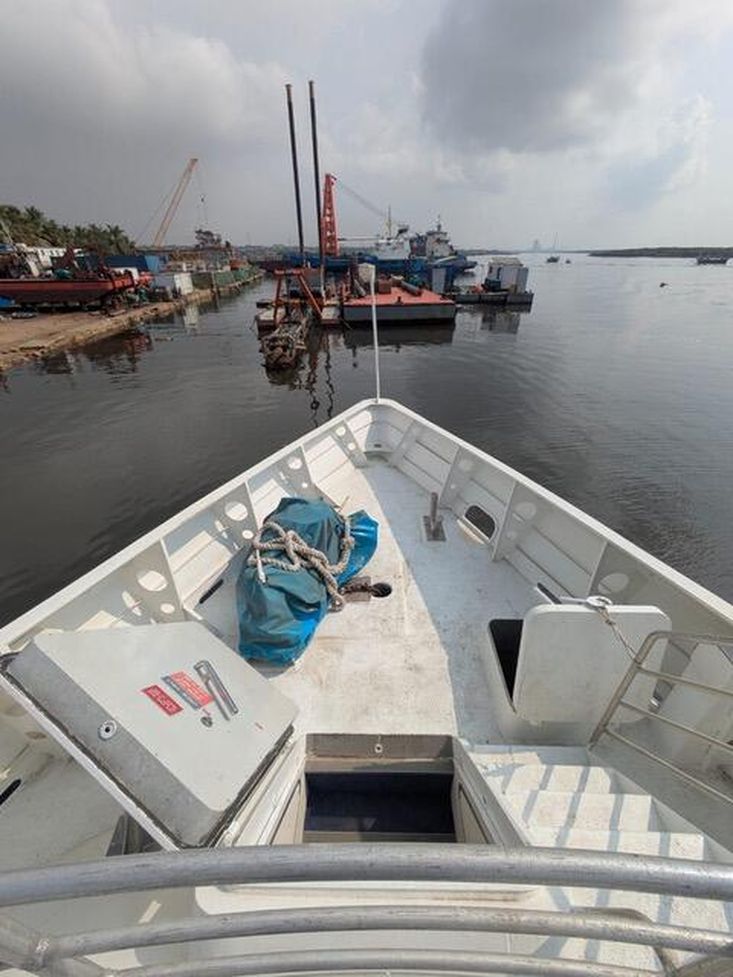

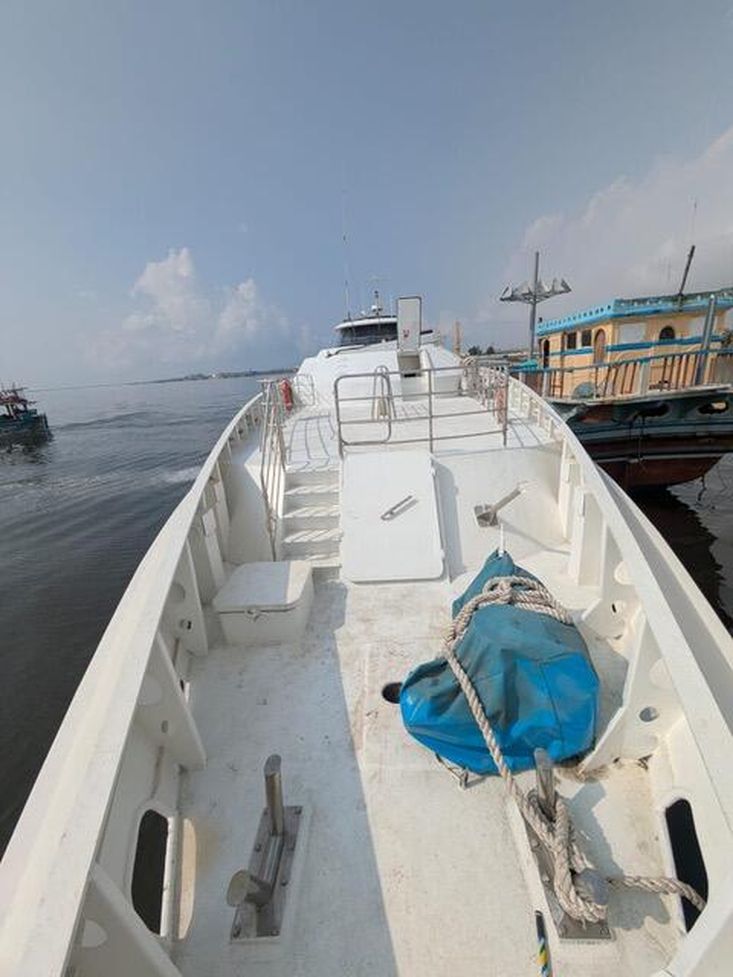

Anchoring
Anchor: 7.1 T Galvanised
Anchor Chain & Rope Total Length: 114.78 m

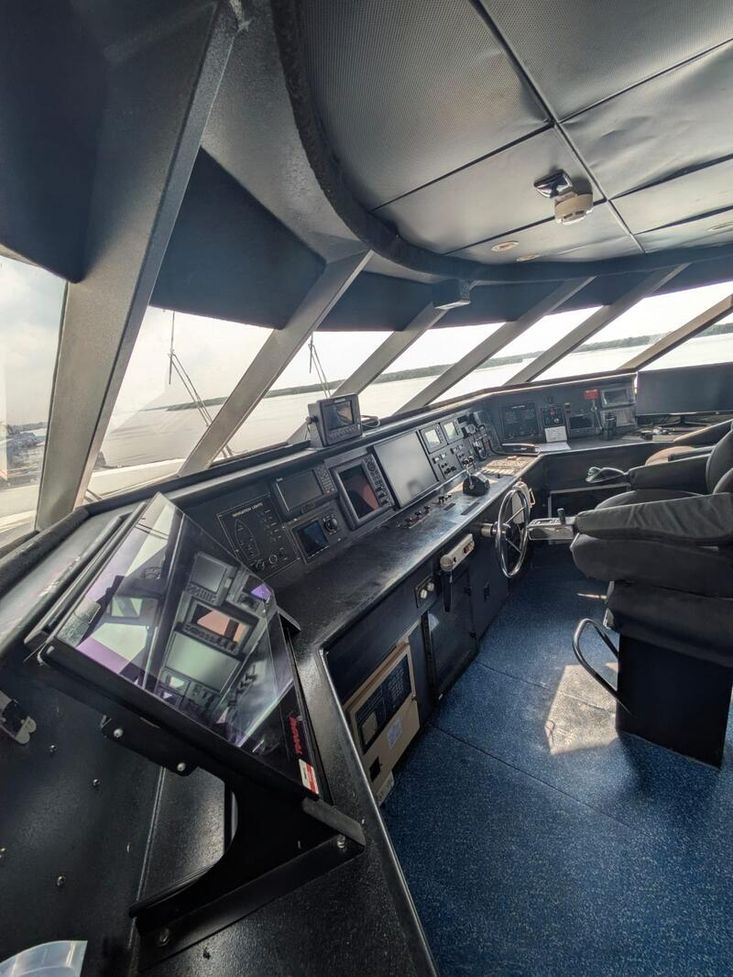

Navigation Equipment

Engine(s)

PERFORMANCE
Designed Speed: 28.3 knots (at 75% load)

MAIN ENGINE
Type: Caterpillar C32 (Diesel)
Power: 1044.5 kW
Auxiliary Generator
Brand: Perkins P50
Output: 50 kVA / 40 kW
Electrical: 400/230V, 3 Phase, 50 Hz

PROPELLER
Type: 5-Blade
Diameter: 1150 mm


CAPACITIES
Fuel Capacity: 5,800 L + 4,000 L (additional)
Fresh Water Capacity: 600 L + 1,000 L (additional)
Sullage Tank: 600 L

Safety Equipment

SAFETY
Life Raft Capacity: 220 persons

Certification

Flag: Belize
Class: PMDS

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
