| Blue Sea Brokers | |
| Nigrán, Pontevedra, 36350, Spain | |
| Telephone: | Reveal Telephone Number |
| Website: | Visit Company Website |
| View All Blue Sea Brokers Listings | |
| Status: | Available |
| Location: |
NORTH EUROPE Germany [View Map] |
| Reference: | DO0219 |
| Website: | Open website in new window |
Description
DO0219 Barge - Crane Barge For Charter
- FROM DIRECT OWNERS -
ADDITIONAL INFORMATION
LIFTING CAPACITY PER CRANE: 100 t
CARGO AREA ON DECK: 20 x 15 m
SUPPORT HOOK: up to 10 t
Operating speed
UP TO 35 T: 30 m/min
UP TO 100 T: 10 m/min
WEIGHT
MAXIMUM OUTREACH FROM FRONTSIDE
MAXIMUM LIFTING FREIGHT FROM DECK
Approx. 35 t /Approx. 35 m /Approx. 35 m
Approx. 40 t /Approx. 30 m /Approx. 35 m
Approx. 55 t /Approx. 25 m /Approx. 35 m
Approx. 75 t /Approx. 20 m /Approx. 35 m
Approx. 100 t Approx. 15 m Approx. 35 m
Specifications
| Vessel type: | DO0219 Barge - Crane Barge For Charter |
| Builder: | GERMANY |
| Constructed: | 1969 |
| Class Society: | Local Class |
| No. of engines: | 2 |
| Engine model: | PS IHP Schottel |
| Engine power: | 1300 |
| Length over all: | 40.20m |
| Beam: | 22.40m |
| Maximum draft: | 2.62m |
| Hull material: | Steel |
Construction
Built (year and place) 1969,GERMANY
Hull material Steel
Length Overall (m) 40.20 m
Breadth (m) 22.40 m
Depth (m) 4.00 m
Draft (m) 2.62 m

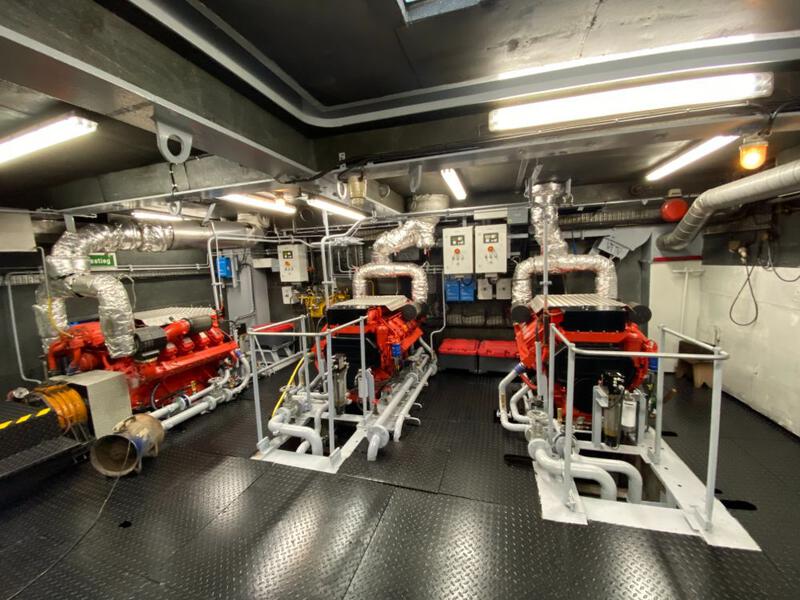

Engine(s)
Total power output (BHP) 1300 bhp
Main Engine(s) (make,type) 2 x PS IHP Schottel
Certification
Flag GERMANY
Class Society and Notation Local Class
Charter Information
| Charter Information: | for charter |
