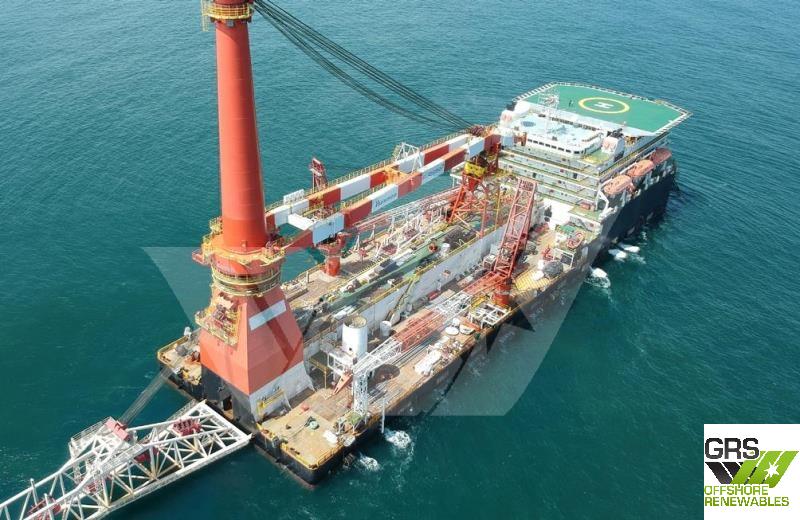

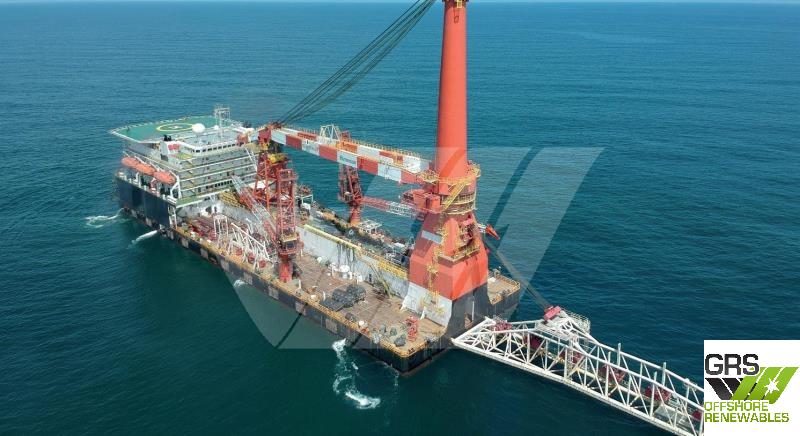

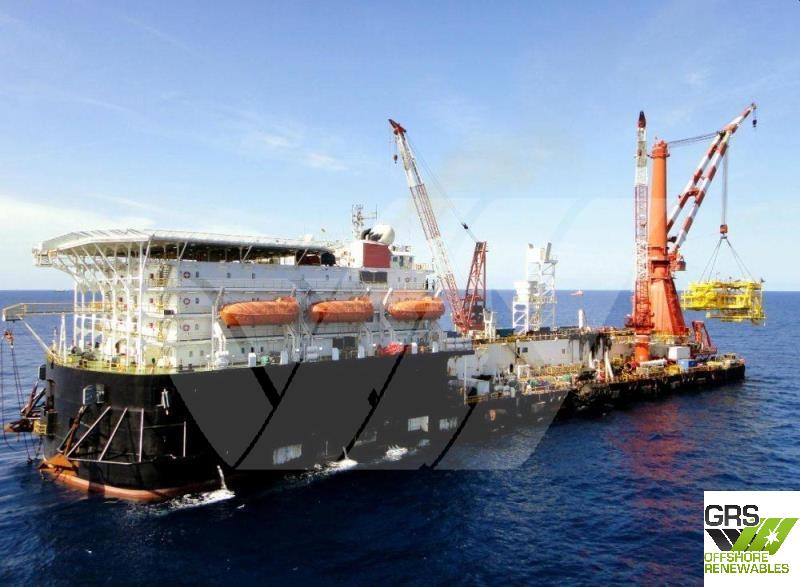

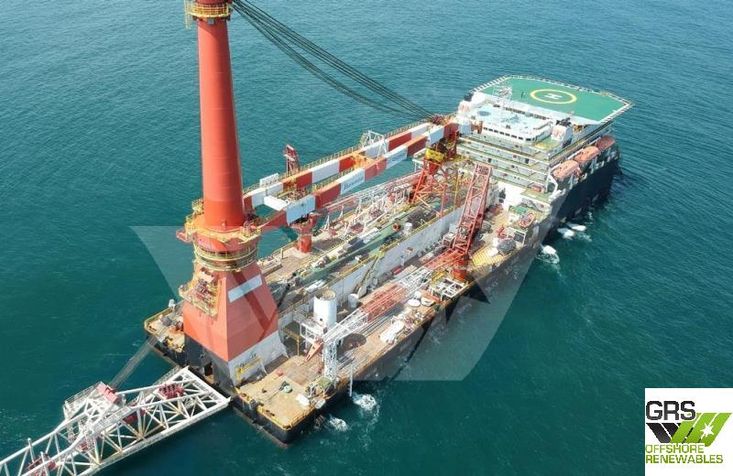

Description

LOA 142 m
Beam 40 m
Draft 6,52 m

Built in year 2007
Class : Lloyd's Register
Flag : Singapore
Gross Tonnage of 25.112 and Nett Tonnage of 7.533

Deadweight : 16.576 metric tonnes
Dynamic Positioning of class : DP 2
Free Deck area about 4.000m² with a deck strength of 17 metric tonnes per square meter
Heli Deck installed
Fire Fighting System installed
1 Crane / Gear installed with a max lifting capacity of 2200 tons
Cranes / Gears installed with a max lifting capacity of 302 tons
2 Cranes / Gears installed with a max lifting capacity of 68 tons
max lifting capacity of 75 tons

Total passenger capacity 380 with 380 berths
30 cabins with 1 berth
56 cabins with 2 berths
54 cabins with 4 berths

Speed : 14 knots
Engines : 6 x Bergens / Rolls-Royce Marine AS B32:40L8A, 23.040 kw, 720 rpm, Propellers 1 Directional (Port Side Fore) + 1 Directional (Starboard Fore) + 1 Directional (Port Side Aft) + 1 Directional (Starboard Aft)
Auxiliaries Engines : 2 Bergens 1.325 kw + 1 Caterpillar 403 kw, Sternthruster (3 Stern 2.400kw Azimuth fwd Ulstein Aquamaster + 3 Stern 2.400kw Azimuth aft Ulstein Aquamaster)

1 Deck

Capable of supplies of 3.339m³ Fuel Oils and 4.305m³ FW

Specifications

Engine(s)

6 x 23.040 kw, 720 rpm, Bergens / Rolls-Royce Marine AS B32:40L8A,
Propellers: 1 Directional (Port Side Fore) + 1 Directional (Starboard Fore) + 1 Directional (Port Side Aft) + 1 Directional (Starboard Aft)
