Description

LOA 52,12 m
Beam 34,53 m
Draft 2,92 m

Built in year 2007
Class : American Bureau of Shipping
Flag : Panama
Gross Tonnage of 2.878 and Nett Tonnage of 863

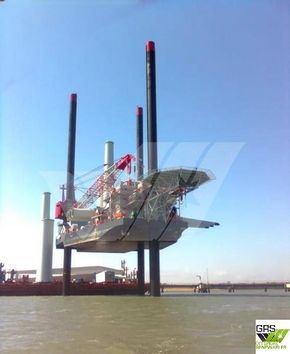

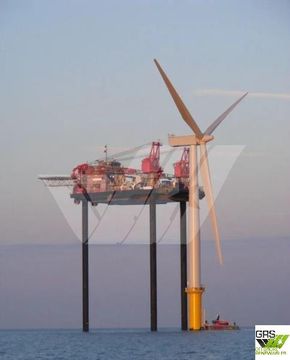

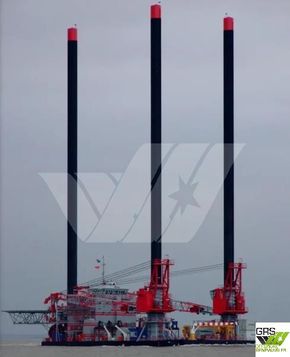

3 legs of 85m length for max water depth of 66m

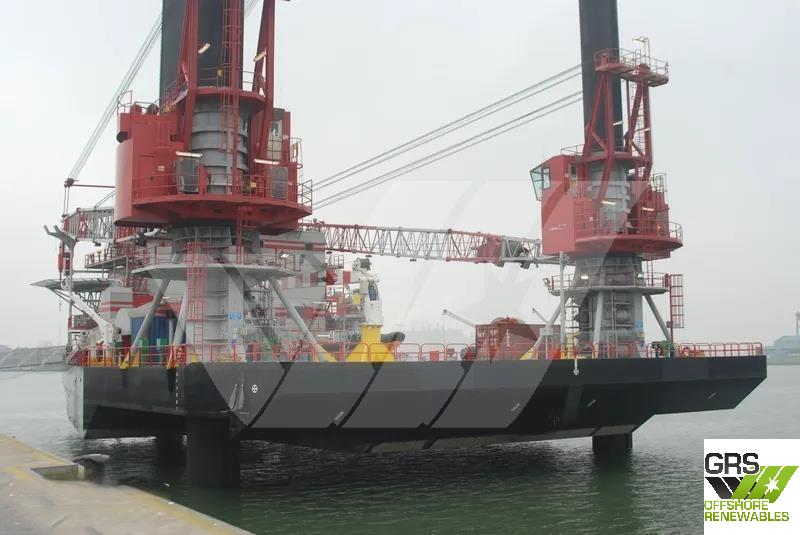

2 Cranes / Gears installed with a max lifting capacity of 200 tons
Free Deck area about 550m²

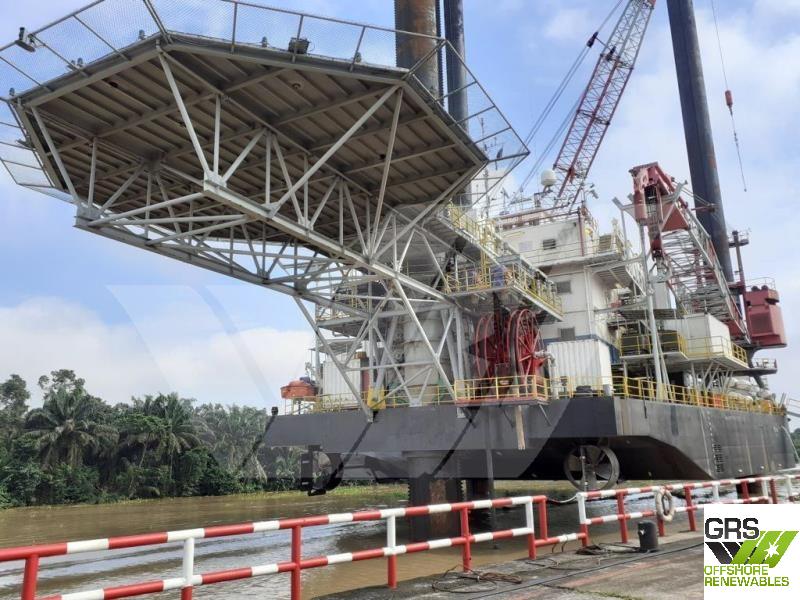

Heli Deck installed

Total passenger capacity 240

Speed : 7 knots
Engines : 2 x Caterpillar / Caterpillar Inc 3512B-TA, 2.348 kw, 1.800 rpm, Propellers 1 x Port Side + 1 x Starboard
Auxiliaries Engines : 2 Caterpillar 449 kw

Specifications

Engine(s)

2 x 2.348 kw, 1.800 rpm, Caterpillar / Caterpillar Inc 3512B-TA,
Propellers: 1 x Port Side + 1 x Starboard

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network
