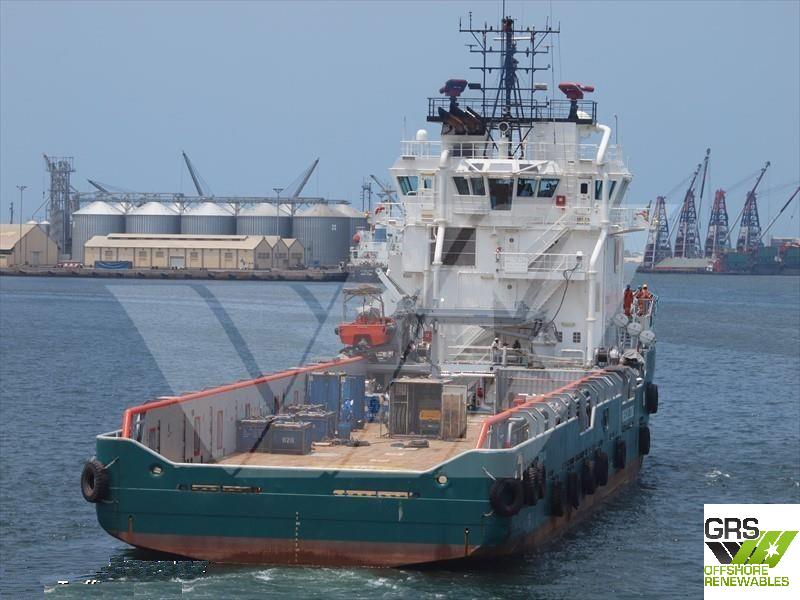

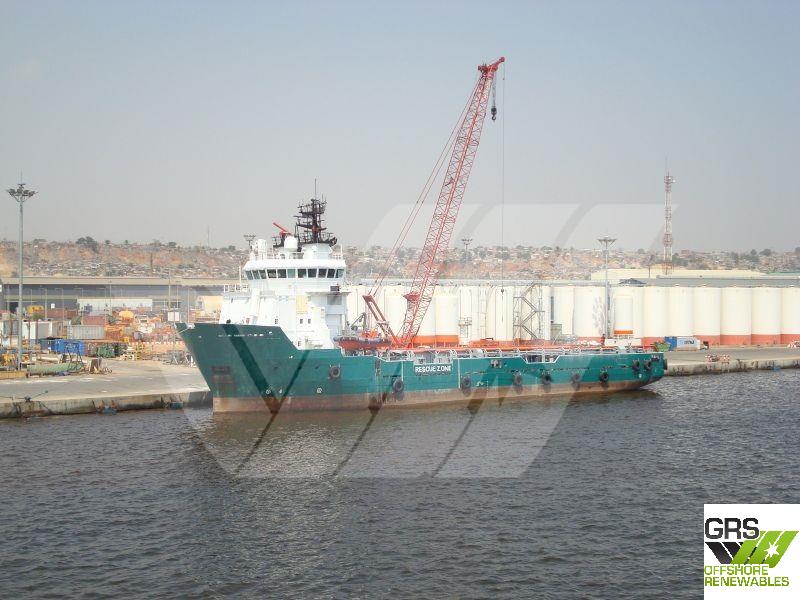

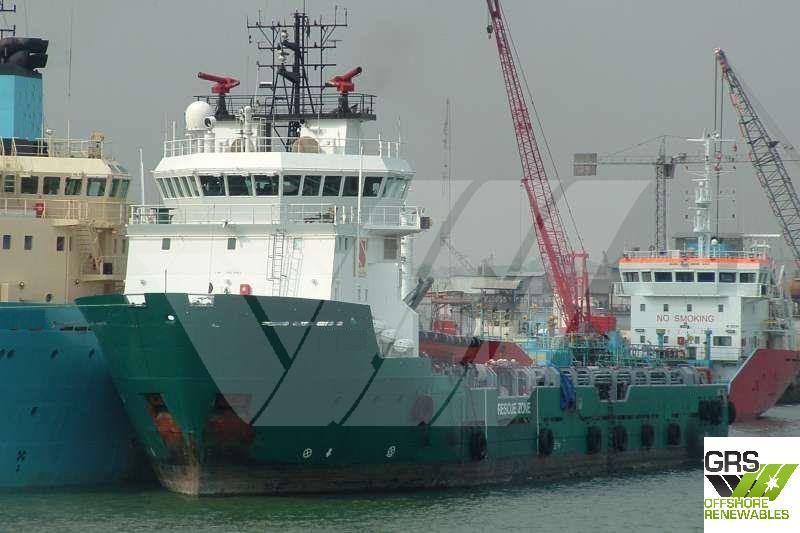

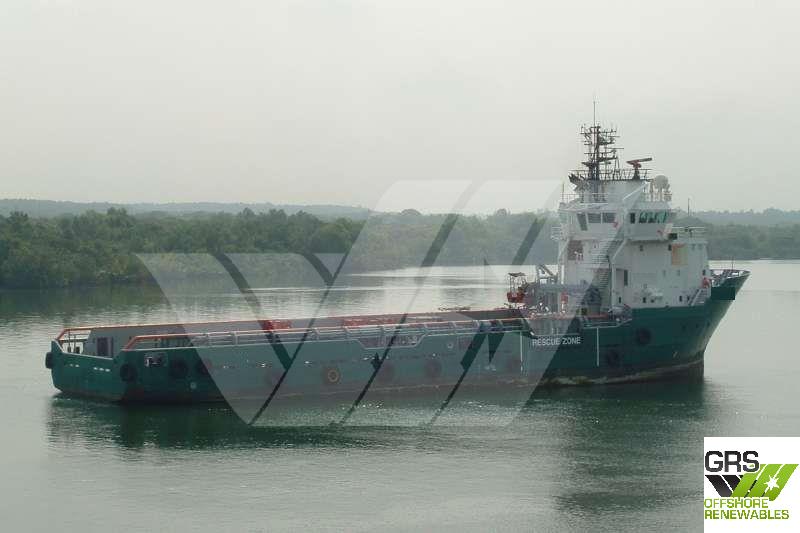

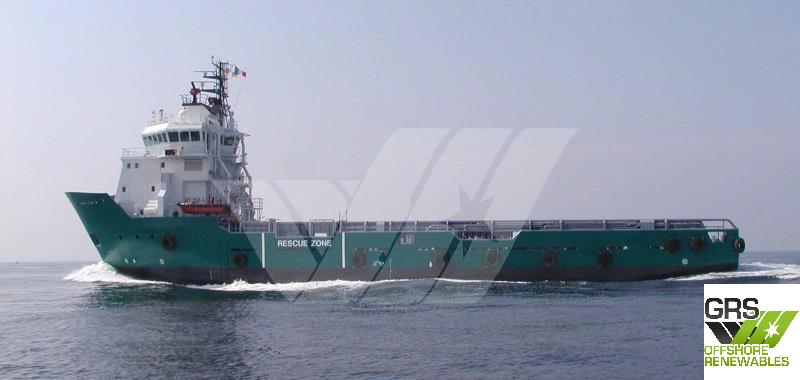

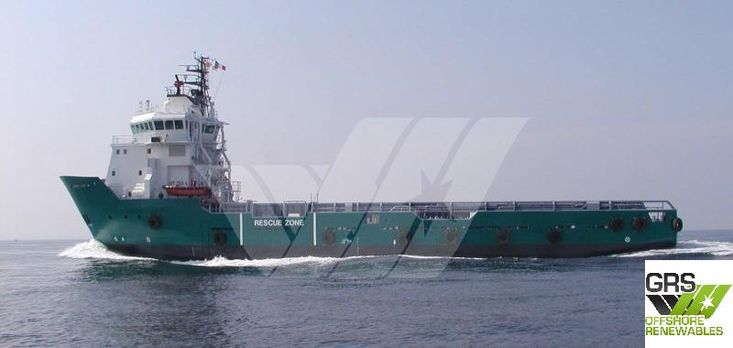

Description

LOA 72 m
Beam 16 m
Draft 5,81 m

Built in year 2002
Design is : UT 755-L
Class : Bureau Veritas
Flag : Panama
Gross Tonnage of 2.161 and Nett Tonnage of 648

Dynamic Positioning of class : DP 1
Free Deck area about 688m²
Fire Fighting System of type FiFi 1 installed
Deadweight : 3.247 metric tonnes

Total 26 berths

Speed : 14,5 knots
Propulsion is Diesel Electric
Engines : 2 x Bergens / Rolls-Royce Marine AS KRMB-9, 4.016 kw, 825 rpm, Propellers 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
Auxiliaries Engines : 2 Caterpillar, Bowthruster + Sternthruster (1 Bow Tunnel thruster 590kw + 1 Bow Directional thruster 590kw + 1 Stern Tunnel thruster 590kw)

Specifications

Engine(s)

2 x 4.016 kw, 825 rpm, Bergens / Rolls-Royce Marine AS KRMB-9,
Propellers: 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network
