Description

LOA 71,9 m
Beam 16 m
Draft 5,83 m

Built in year 2007

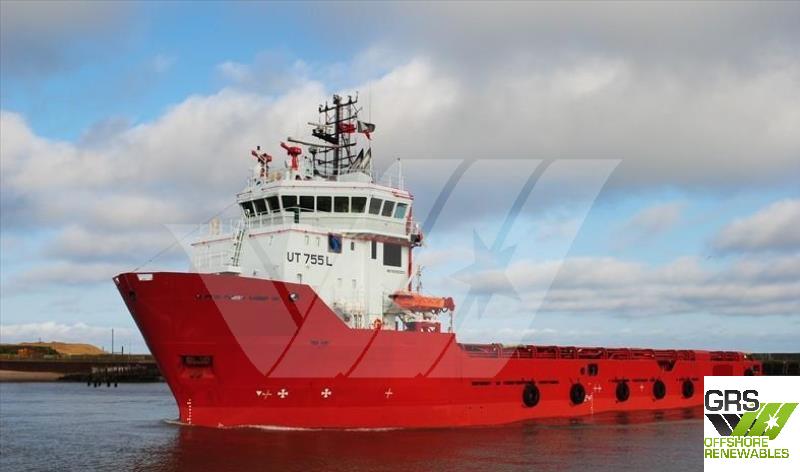

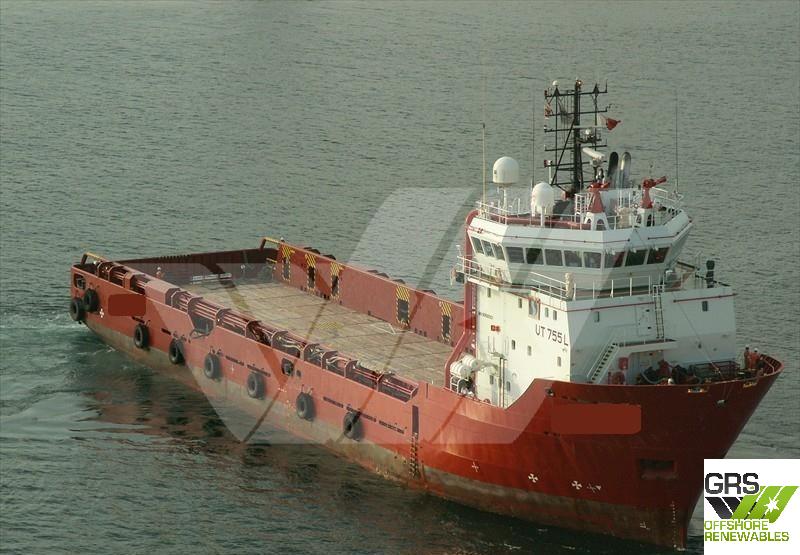

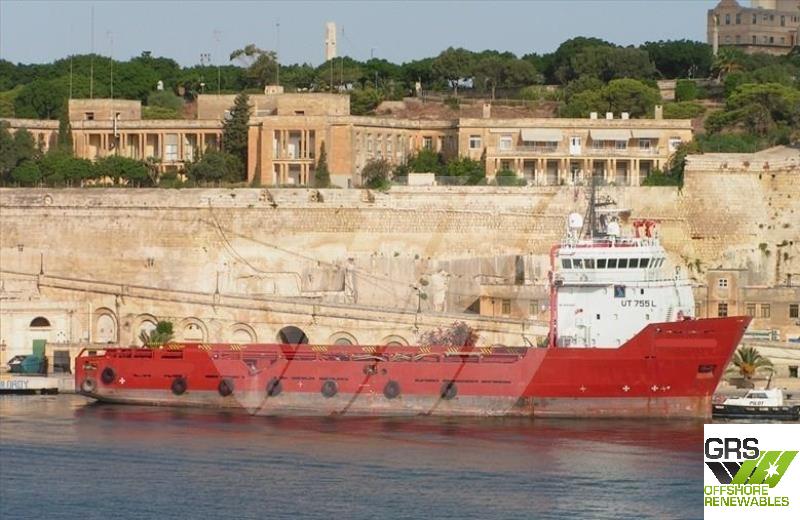

Design is : UT 755-L
Class : International Register
Flag : Palau
Gross Tonnage of 2.160 and Nett Tonnage of 1.036

Dynamic Positioning of class : DP 2
Free Deck area about 680m² with a deck strength of 5 metric tonnes per square meter
Fire Fighting System installed
1 Crane / Gear installed with a max lifting capacity of 3 tons
Deadweight : 3.250 metric tonnes
Capable of supplies of 1.000m³ Fuel Oils, 840m³ FW, 970m³ Liquid Mud and 390m³ Brine

Total passenger capacity 12 with 22 berths

Speed : 11 knots
Engines : 2 x Bergens / Rolls-Royce Marine AS KRMB-9, 4.010 kw, 825 rpm, Propellers 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
Auxiliaries Engines : 2 Caterpillar 250 kw, Bowthruster + Sternthruster (2 Bow Thwart. CP thruster 590kw + 1 Stern Thwart. CP thruster 590kw)

Specifications

Engine(s)

2 x 4.010 kw, 825 rpm, Bergens / Rolls-Royce Marine AS KRMB-9,
Propellers: 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
