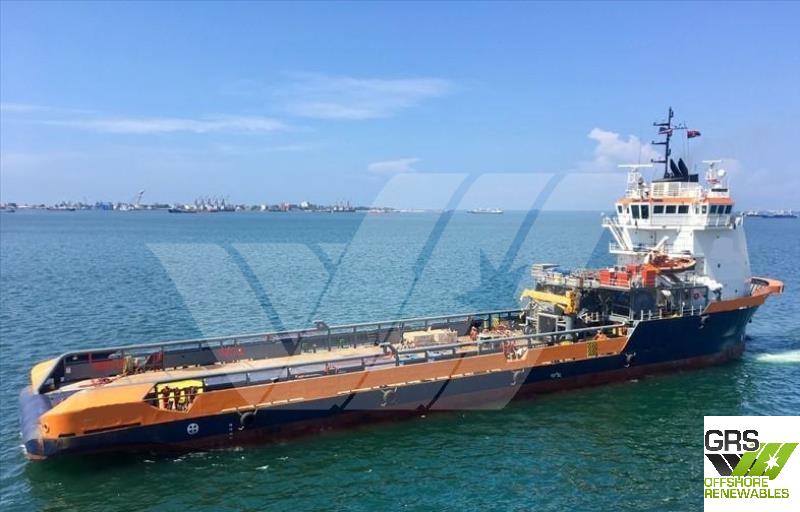

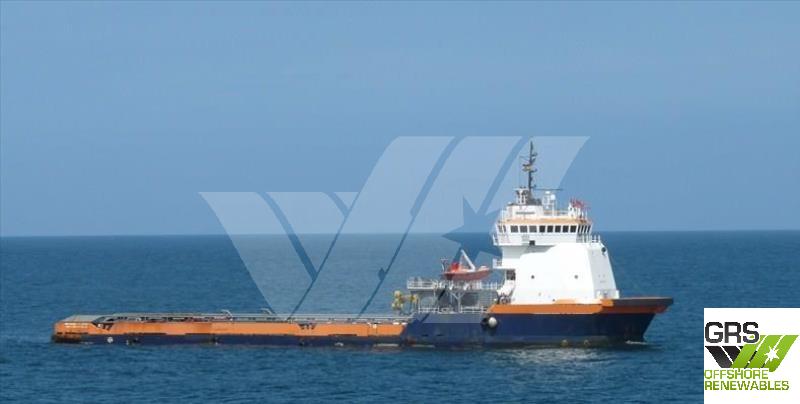

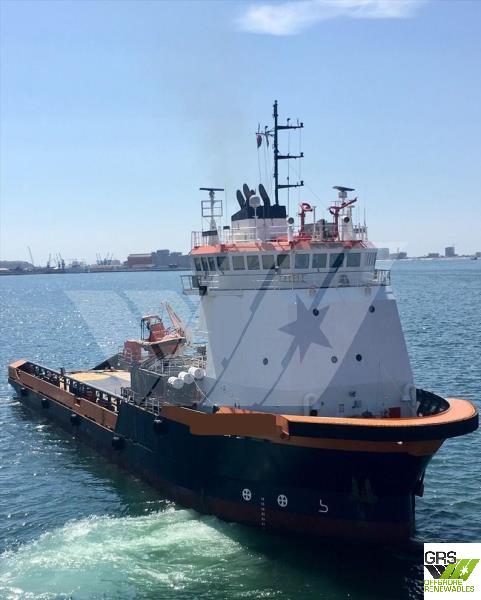

Description

LOA 80,79 m
Beam 15,85 m
Draft 4,72 m
Bollard Pull : 120 tons

Dynamic Positioning of class : DP 2
Free Deck area about 635m² with a deck strength of 5 metric tonnes per square meter
Capable of supplies of 530m³ Fuel Oils, 378m³ FW and 815m³ Liquid Mud
Fire Fighting System of type FiFi 1 installed

Built in year 2008
Class : American Bureau of Shipping
Flag : Marshall Islands
Gross Tonnage of 2.184 and Nett Tonnage of 803

Deadweight : 2.608 metric tonnes

Total 38 berths
1 cabin with 1 berth
1 cabin with 1 berth
2 cabins with 2 berths
4 cabins with 2 berths
1 cabin with 4 berths
6 cabins with 2 berths
1 cabin with 4 berths
4 berths

Speed : 12 knots
Engines : 4 x Caterpillar / Caterpillar Inc 3516B-TA, 7.448 kw, 1.800 rpm, Propellers 1 Fixed Pitch (Port Side) + 1 Fixed Pitch (Starboard)
Auxiliaries Engines : Bowthruster + Sternthruster (2 Bow Thwart. CP thruster 588kw + 1 Stern Thwart. CP thruster 588kw)

Specifications

Engine(s)

4 x 7.448 kw, 1.800 rpm, Caterpillar / Caterpillar Inc 3516B-TA,
Propellers: 1 Fixed Pitch (Port Side) + 1 Fixed Pitch (Starboard)
