Description

LOA 59,25 m
Beam 14,95 m
Draft 4,95 m
Bollard Pull : 63 tons

Dynamic Positioning of class : DP 1

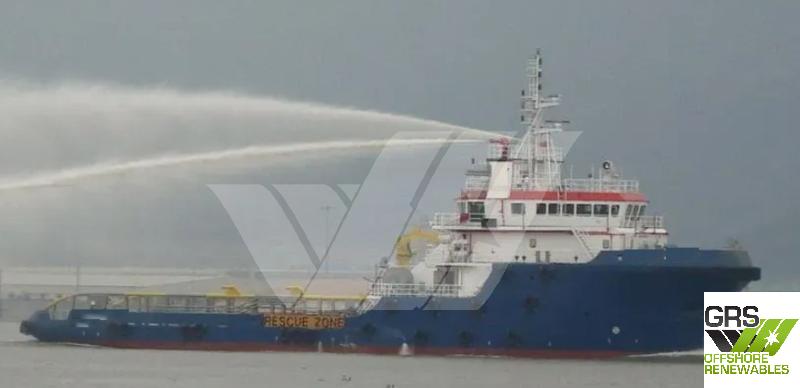

Fire Fighting System of type FiFi 1 installed
1 Crane / Gear installed with a max lifting capacity of 3 tons

Built in year 2008
Design is : DN59M
Class : Bureau Veritas
Flag : Marshall Islands
Gross Tonnage of 1.678 and Nett Tonnage of 503

Deadweight : 1.374 metric tonnes

Speed : 10 knots
Engines : 2 x Caterpillar / Caterpillar Inc 3516B-HD, 3.840 kw, 1.600 rpm, Propellers 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
Auxiliaries Engines : 3 Caterpillar 315 kw, Bowthruster + No Sternthruster (1 Bow Tunnel thruster)

Specifications

Engine(s)

2 x 3.840 kw, 1.600 rpm, Caterpillar / Caterpillar Inc 3516B-HD,
Propellers: 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network

Disclaimer

GRS performs its services exclusively on the basis of its General Terms and Conditions, which are available at the GRS website www.grs-offshore.com.
All details are given in good faith but without guarantee. Subject to availability.
