Description

Year of Built: 2003
Builder: Ravestein
Ship type: Self-elevating unit
Gross / Net Tonnage (ITC ’69): 6558 / 1968 (National: 6138.85 / 3885.03)
DWT (tonnes): 4130.70 (subject to loading conditions)
Lightship (tonnes): 7569.30
Summer freeboards: 3000 mm from upper deck line
TPC at summer draught: N/A
Length between perpendiculars, LBP (m): 91.20
Length overall, LOA (m): 95.60
Breadth (m): 33.00
Depth (m): 7.00
Draught maximum (m): 3.00
Hull Material / Connections: Steel
Speed (kn): N/A
Decks: Below Main Deck; Main Deck; Deck 1; Deck 2; Deck 3; Deck 4; Deck 5; Bridge Deck
Number of cargo spaces: N/A
Grain capacity: N/A

Other characteristics:
Navigation area: Manned tow: 30 nautical miles; Unmanned tow: unrestricted
Cranes, number, capacity (t):
1 x Manitowoc M-1200 Ringer, max. 500 tonnes (subject to boom configuration)
2 x Heila H RM 140-3SL, 140 tonnes
3 x Effer 860
4 x derricks used for liferafts
Ballast capacity: 5337.85 m³
Freshwater capacity: 95 m³
Heavy Fuel Oil capacity (98%): 7.7 m³
Marine Diesel Oil capacity (98%): N/A
Lub Oil capacity: 1.1 m³
Hydraulic Oil capacity: 4.2 m³
Constant: No information found
Type of hatch covers: N/A
Hatches dimensions: N/A
Notes/Remarks (if any):

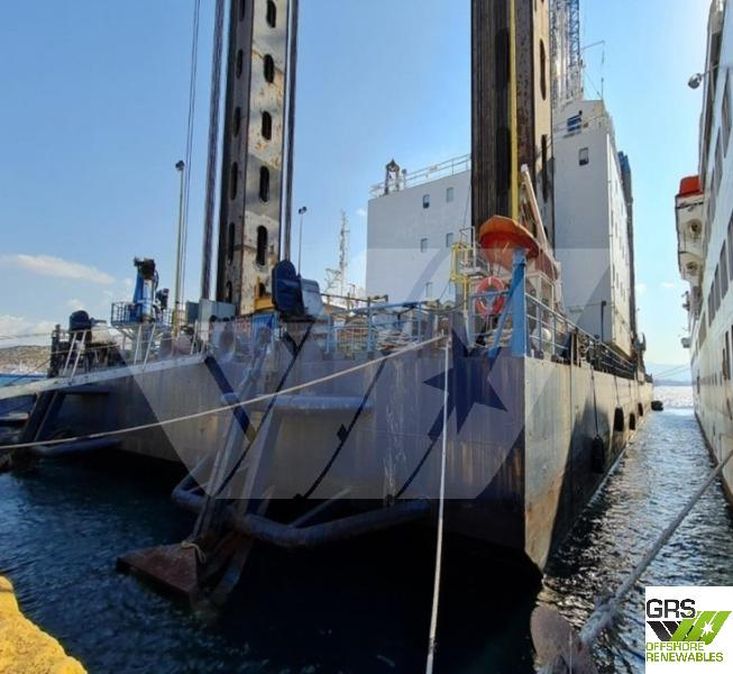

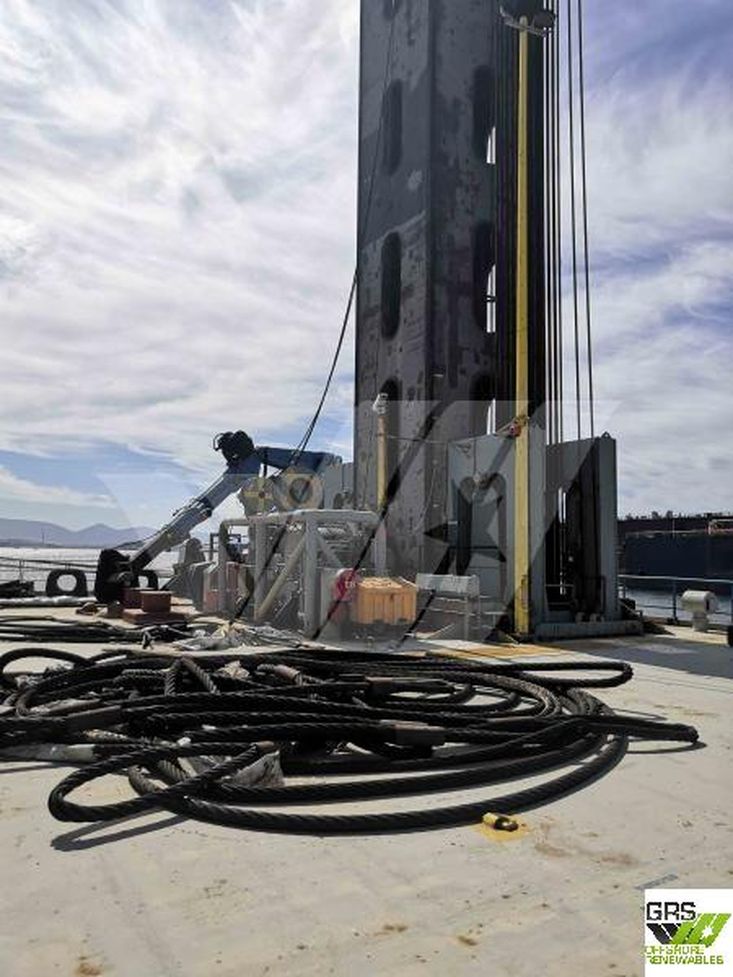

The unit is provided with 4 jack-up legs, 37.00 m length each
Each leg is 7.76 x 8.36 m.
Max. static load on each leg: 3600 tons.
Max. dynamic load on each leg: 2500 tons.

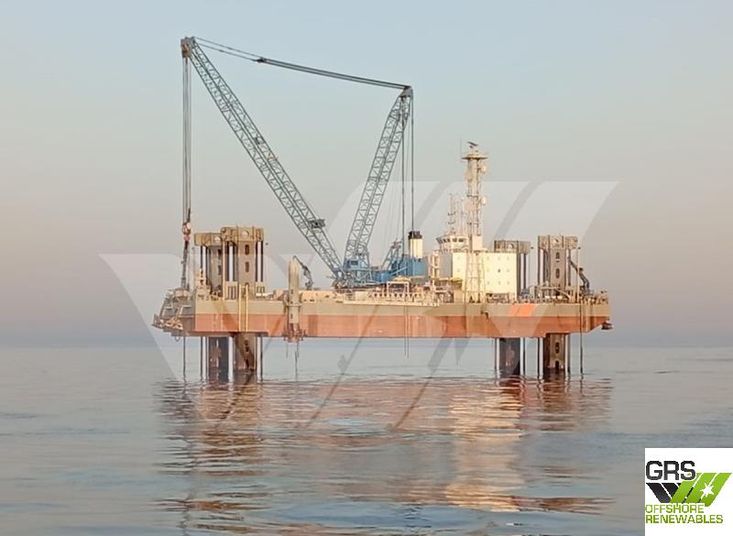

Main deck crane: Manitowoc M-1200 Ringer with 500 ton / up to 1300 ton boom lifting capacity (subject to weather state).
LOA 91.2 m
Beam 33 m
Draft 5.5 m

Built in year 2003
Class : Iranian Classification Society
Flag : Greece
Gross Tonnage of 6,558 and Nett Tonnage of 1,968

4 legs of 50m length for max water depth of 30m
Cranes / Gears installed with a max lifting capacity of 800 tons

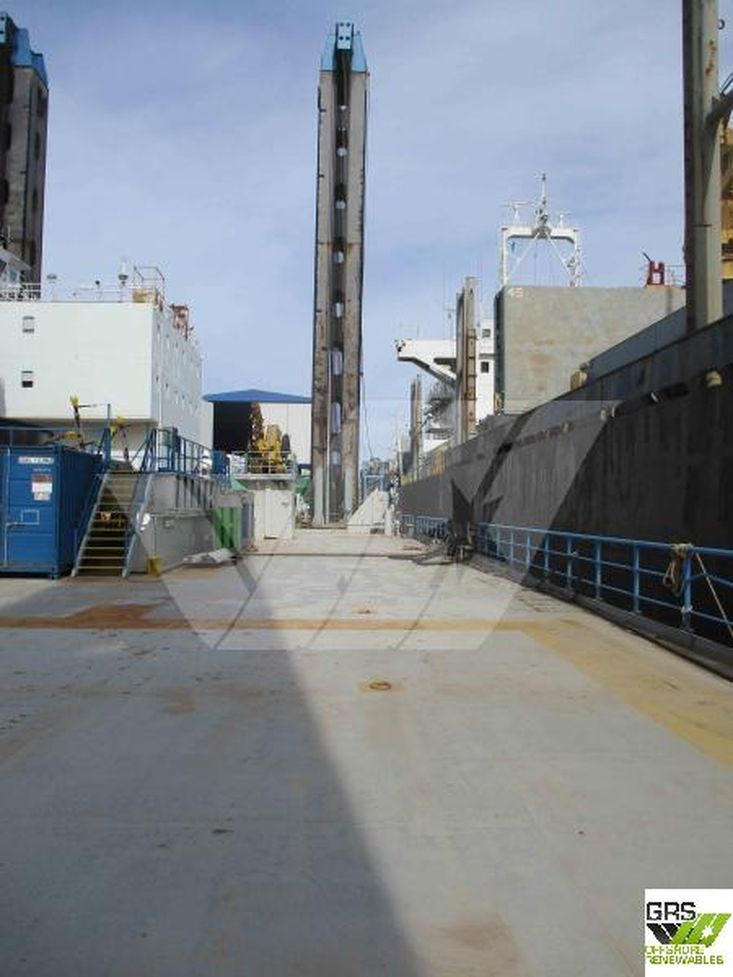

Free Deck area about 2,500m² with a deck strength of 20 metric tonnes per square meter
Deadweight : 4,579 metric tonnes

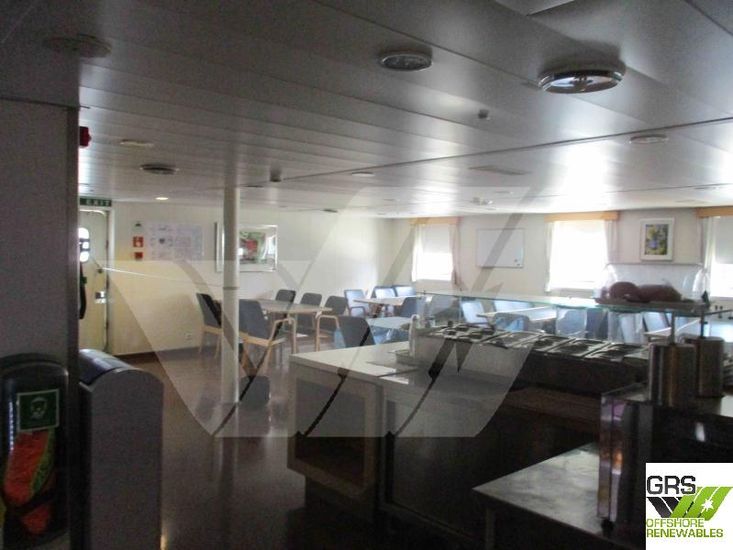

Total passenger capacity 23 with 23 berths
23 cabins with 1 berth

Engines : 1 x Unknown Builder
Auxiliaries Engines : 3 Deutz 440 kw

Specifications

Engine(s)

Unknown Builder
