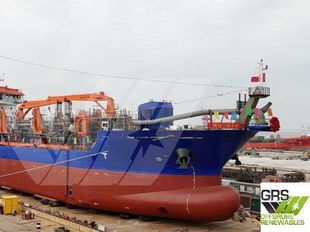

Built:2021 China Inspection place: China Classification:CCS *CSA Trailing Suction Hopper Dredger;R1;Dredging within R2 Flag: China Principal Dimensions and Characteristics Length of all: 128.00 m Beam: 22.00 m Molded Depth: 9.00 m Design Draft:7.80 m Hopper capacity:9,000 m3 Loading time:60 min. Deadweight:11,770 t Design Speed: 11.50 kn Dredging depth:35 m Suction diameter:850 mm Discharge diameter:850 mm Discharge distance:1,500 m Discharge by bow connection:120 min. Propeller Engine Maker:Guangzhou Diesel Power Type:8G32 Power/speed:3552KW 600r/min Q'ty:2 sets Diesel generating set Maker:CN... read more

Hopper volume: 2750 cbm Approx sand intake 4500 tons Dredging depth: 45 m One dredging pipe 700 mm Dredge pump submersible, type IHC , 1100 kW electric motor Discharging by 2 drag scrapers each approx. 8 m3 and conveyor belts located port and starboard aft Emergency bottom doors/valves dia 750 mm Main engine Mirrlees Blackstone MK III 6 cyl. 3.226 kW with shaft generator 2.250 kVA can be used for sailing and dredging Auxiliary engine Mirrlees Blackstone MK II , 1321 kW to 1525 kVA generator 1 auxiliary Caterpillar 3408 – 309 kW to 390 kVA generator 1 Emergency generator Var pitch pr... read more

Classed Danish Maritime Administration - Last surveyed August 2023. Gmdss sea area A1 Volvo VDS 3 600 HP - 10 knots max - eco 8,4 knots Hold : 24 m x 7 meter about 600 cbm Open Cargo Hold: 565cbm Vessel excavator fitted with a Komatsu type 400, showel 1,5 cbm at about 7,5 m outreach. Suction pipe 18 inches and can reach dept of about 18 meter. LOA 74.5 m Beam 9.47 m Draft 2.88 m Built in year 1982 Flag : Denmark Gross Tonnage of 853 and Nett Tonnage of 255 Deadweight : 1,089 metric tonnes Speed : 10 knots Engines : 1 x Deutz / Kloeckner-Humboldt-Deutz - GFR SBA6M528, 441 kw, 683 rpm... read more

LOA 122.93 m Beam 22 m Draft 8.3 m Built in year 2026 Flag : China Speed : 13 knots Engines : 2 x, 8,086 kw... read more

heavy-duty, self-propelled Cutter Suction Dredger (CSD) designed for coastal and port operations up to 28 meters deep. Built in 2014 by the renowned IHC shipyard, the vessel offers exceptional power (over 23,500 kW) and advanced dredging systems. Designed for coastal and sheltered water operations up to 15 meters. Gross Tonnage (GT): 5,670 tons Net Tonnage (NT): 1,701 tons Maximum Speed: 9 knots Total Power: 23,545 kW Cutter Power: 3,500 kW Maximum Dredging Depth: 28 meters Total Installed Power: Approx. 23,545 kW 4 × Main Generator Sets (~5,288 kVA - 4,230 kW each) 1 × Emergency Generator... read more

LOA 60.04 m Beam 12.4 m Draft 3.95 m Built in year 1980 Flag : USA Gross Tonnage of 1,183 and Nett Tonnage of 354 Deadweight : 1,000 metric tonnes Speed : 8.5 knots Engines : 2 x Caterpillar / Caterpillar Tractor Co D398SCAC, 1,250 kw, 1,300 rpm, Propellers 1 Directional (Port Side Aft) + 1 Directional (Starboard Aft) 1 Deck... read more

Hopper capacity - 2500m3 Dredger Capacity Pump (m3/h) - 9306 m3/h LOA 99 m Beam 16.3 m Draft 6.54 m Built in year 1990 Class : Indian Register of Shipping Flag : Kuwait Gross Tonnage of 3,751 and Nett Tonnage of 1,125 Deadweight : 5,916 metric tonnes Speed : 11.5 knots Engines : 1 x Mirrlees / Mirrlees Blackstone KMR8MK3, 3,974 kw, 600 rpm, Propellers 1 Controllable Pitch (Center) Auxiliaries Engines : 1 Caterpillar 673 kw + 1 Caterpillar 142 kw, Bowthruster + No Sternthruster (1 Bow Thwart. FP thruster 360kw) 1 Deck... read more

Trailing Suction Hopper Dredger Blt 17 Sep., 2012 Shipyard: Ching Fu Shipyard, Taiwan Clas DNV 1A1 DREDGER TMON Maximum Ship Speed 13.0 kts Dredging Speed 1 ~ 3 kts Gross Tonnage (GRT) 7,636 Net Tonnage (NT) 2,290 Deadweight Tonnage (DWT) 10,650 Endurance 25days? Overall Length LOA 116.95m Width 22.00m Molded Depth 8.90m Maximum Summer Draft 6.8m Maximum Dredging Draft 7.8m Main Engine STX-MAN Diesel Engine 3500KW (750rpm) *2 units Propulsion Equipment CPP (4-blade nozzle) *2 Generator 425 KW*3 units Bow thruster (375kw) Windlass Hydraulic Ele. Motor Type*2 units (9m/sec) Crane 12T*15m*1 unit... read more

8000m³ Trailing Suction Hopper Dredger Design Standard Classification: CCS, ?CSA Trailing Suction Dredger, Ice Class B, Dredging within R2 CCS, ?CSM BRC Navigation Area: International unrestricted navigation area Dredge Depth: 32.00/60.00m Soil Capability: silt. clay. fine sand. middle fine sand. large sand. gravel and pebbles Application: Applicable to coastal ports, channel dredging, filling works, coastal maintenance projects Principal particulars Length over all: ~122.60m Breadth: 24.60m Depth: 8.90m Draft: 7.50m Maximum capacity of mud tank: ~7000m³ Diameter of dredge pipe: 800.00mm Spe... read more

LOA 105 m Beam 21 m Draft 5 m Built in year 2021 Class : China Classification Society Flag : China Gross Tonnage of 5,000 and Nett Tonnage of 1,500 Deadweight : 4,434 metric tonnes Ice classed 1D Speed : 12 knots Engines : 2 x Caterpillar / Caterpillar Inc C280-8, 5,420 kw, 1,000 rpm, Propellers 1 Fixed Pitch (Port Side) + 1 Fixed Pitch (Starboard) Auxiliaries Engines : 1 Caterpillar 922 kw 1 Deck... read more
