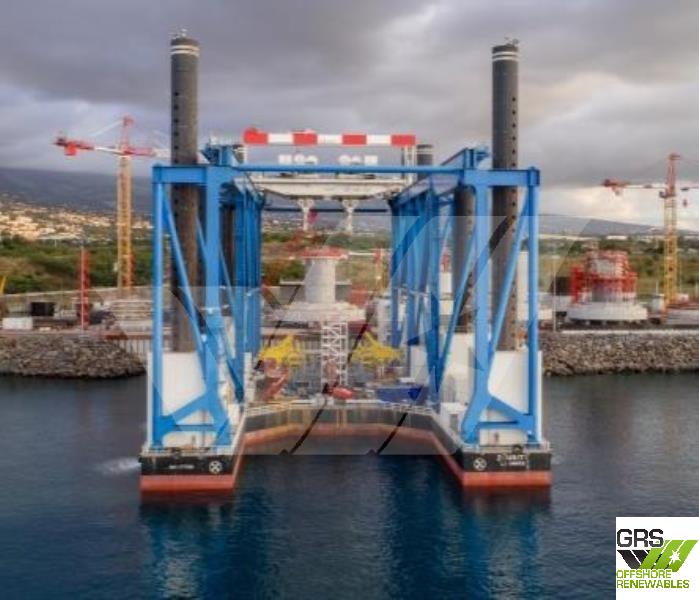

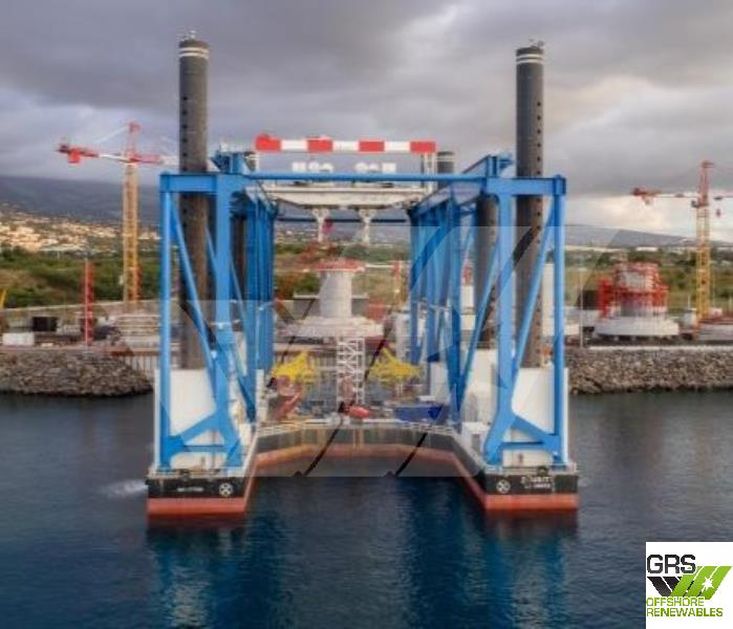

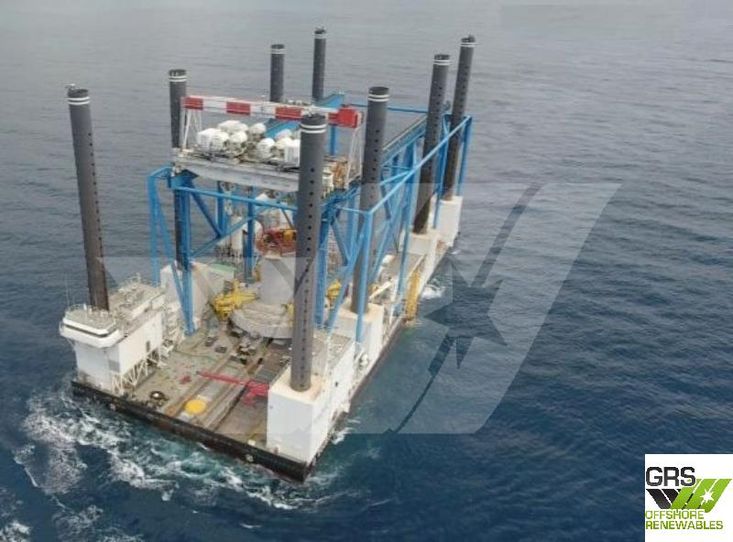

Description

LOA 108 m
Beam 47,5 m
Draft 5,1 m

Built in year 2016
Class : Bureau Veritas
Flag : France
Gross Tonnage of 9.242 and Nett Tonnage of 2.772

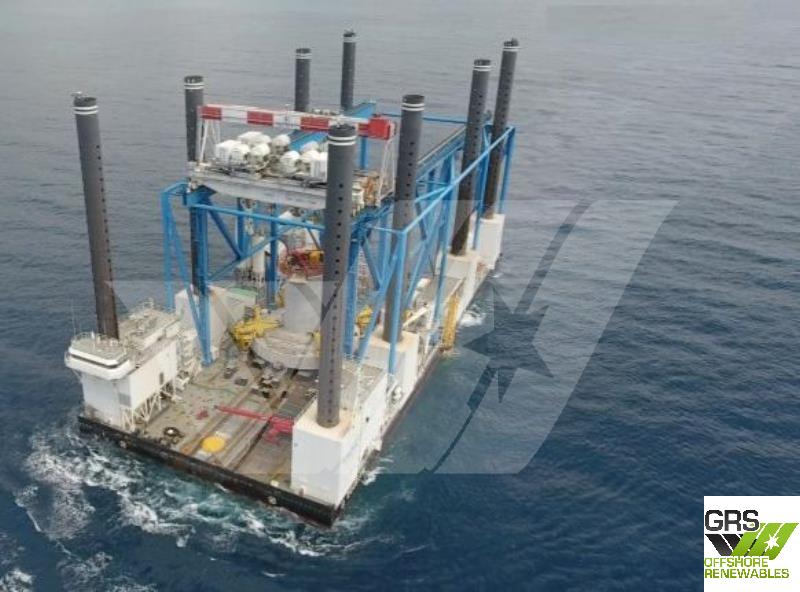

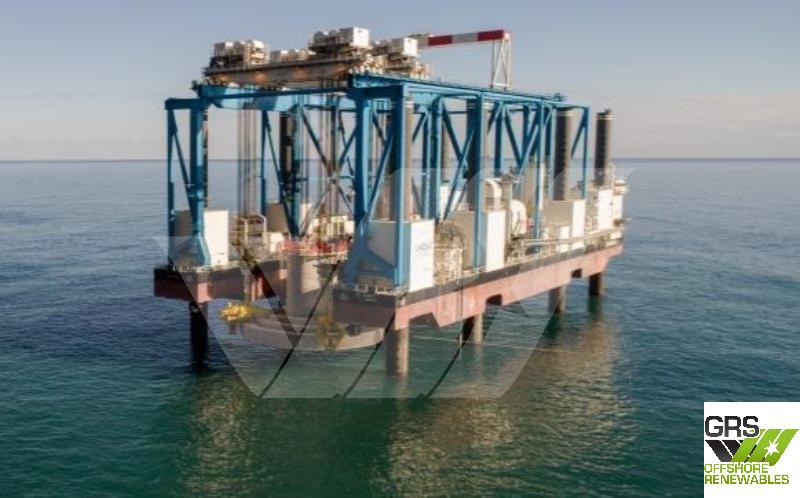

8 legs of 55m length
Dynamic Positioning of class : DP 1

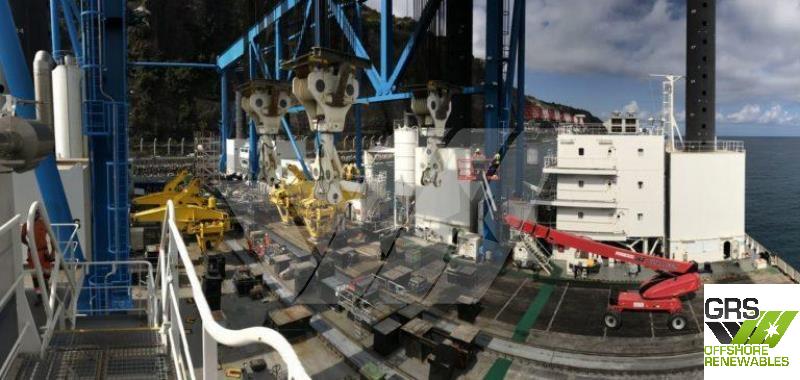

1 Crane / Gear installed with a max lifting capacity of 4400 tons
1 Crane / Gear installed with a max lifting capacity of 110 tons
1 Crane / Gear installed with a max lifting capacity of 25 tons
1 Crane / Gear installed with a max lifting capacity of 6 tons
Free Deck area about 1.875m² with a deck strength of 30 metric tonnes per square meter
Deadweight : 6.086 metric tonnes

Total 12 berths

Speed : 3,5 knots

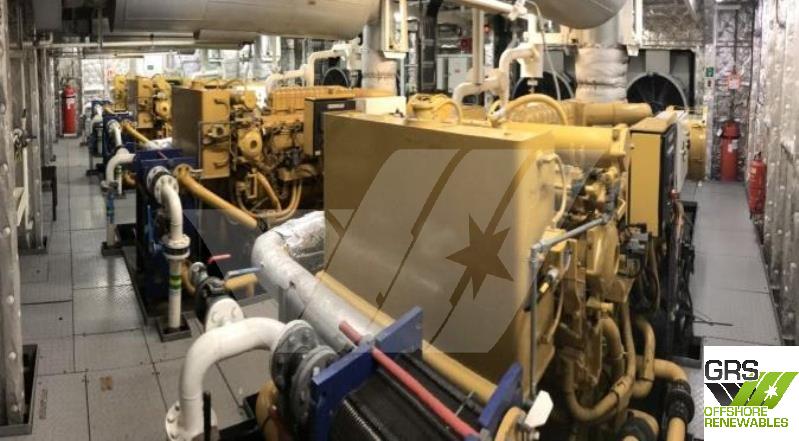

Engines : 4 x Caterpillar / Unknown Builder, 4.800 kw, 1.500 rpm, Propellers 4 Azimuth Elec. Dr. (Other Position)
Auxiliaries Engines : No Bowthruster + No Sternthruster

Specifications

Engine(s)

4 x 4.800 kw, 1.500 rpm, Caterpillar / Unknown Builder,
Propellers: 4 Azimuth Elec. Dr. (Other Position)

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network
