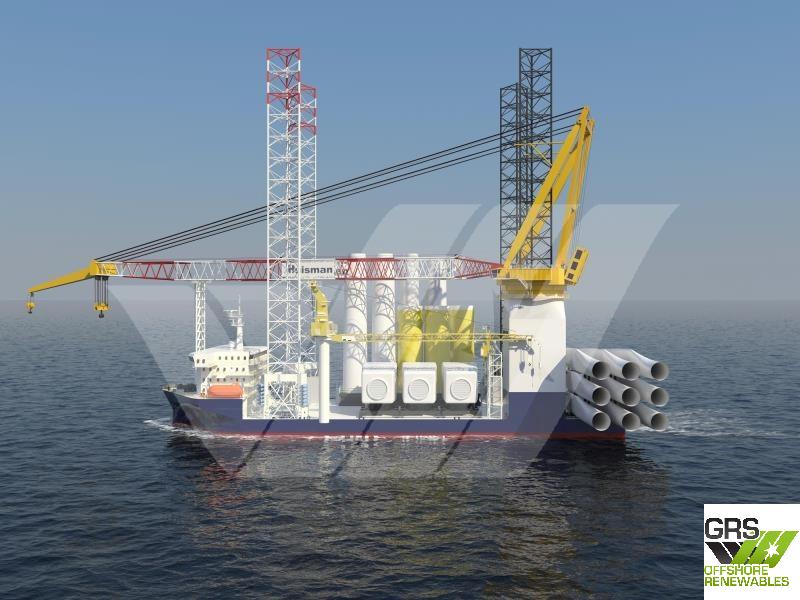

Description

LOA 133 m
Beam 53 m
Draft 7 m

Built in year 2024
Class : China Classification Society
Flag : China
Gross Tonnage of 25.084 and Nett Tonnage of 7.525

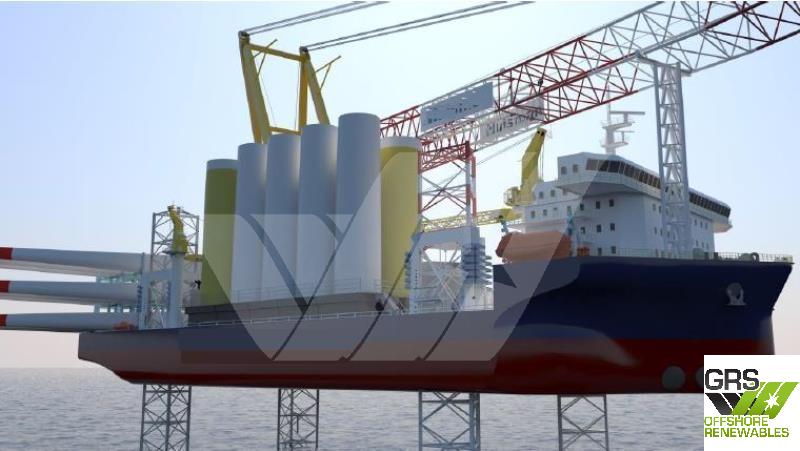

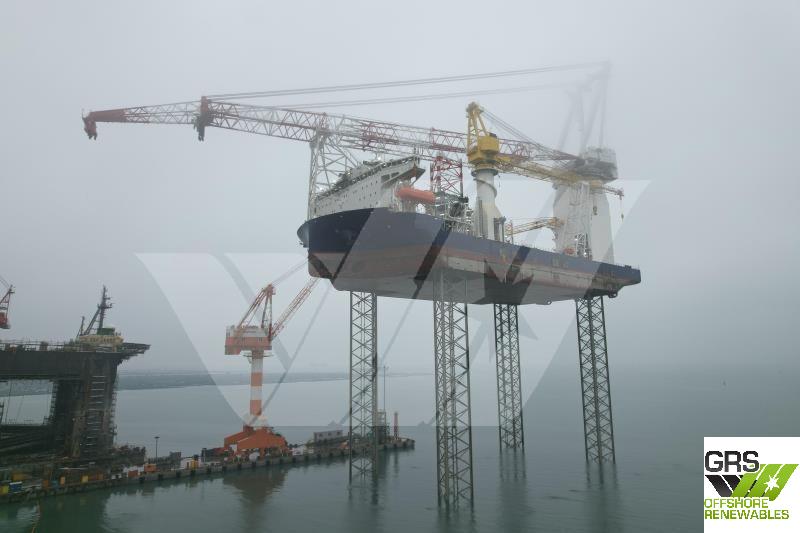

4 legs of 120m length for max water depth of 65m
Dynamic Positioning of class : DP 2

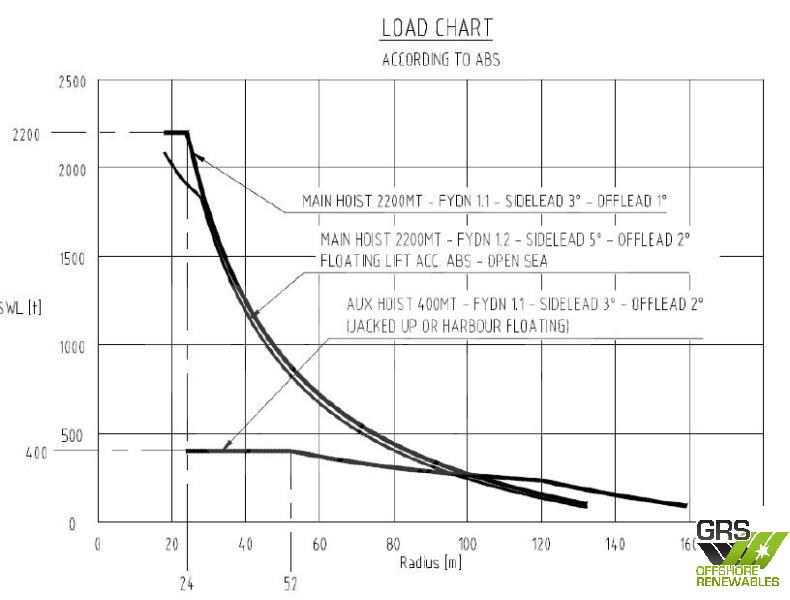

1 Crane / Gear installed with a max lifting capacity of 2200 tons
1 Crane / Gear installed with a max lifting capacity of 300 tons
1 Crane / Gear installed with a max lifting capacity of 50 tons

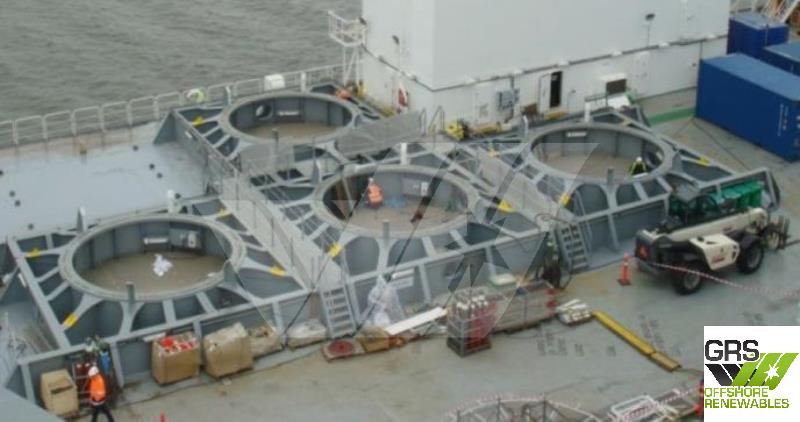

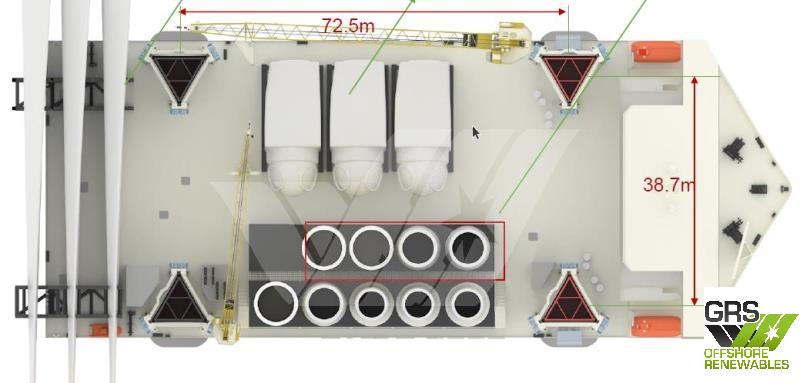

Free Deck area about 4.800m² with a deck strength of 15 metric tonnes per square meter
Deadweight : 9.000 metric tonnes
Ice classed 1D

Total 120 berths

Speed : 8 knots
Engines : 6 x MAN / Unknown Builder 7L32/40, 21.000 kw, 750 rpm, Propellers 1 Azimuth Elec. Dr. (Fore) + 1 Azimuth Elec. Dr. (Aft)
Auxiliaries Engines : 6 MAN 3.500 kw

Specifications

Engine(s)

6 x 21.000 kw, 750 rpm, Tier III, MAN / Unknown Builder 7L32/40,
Propellers: 1 Azimuth Elec. Dr. (Fore) + 1 Azimuth Elec. Dr. (Aft)
