Description

Located: Singapore / ready for Shipment
L

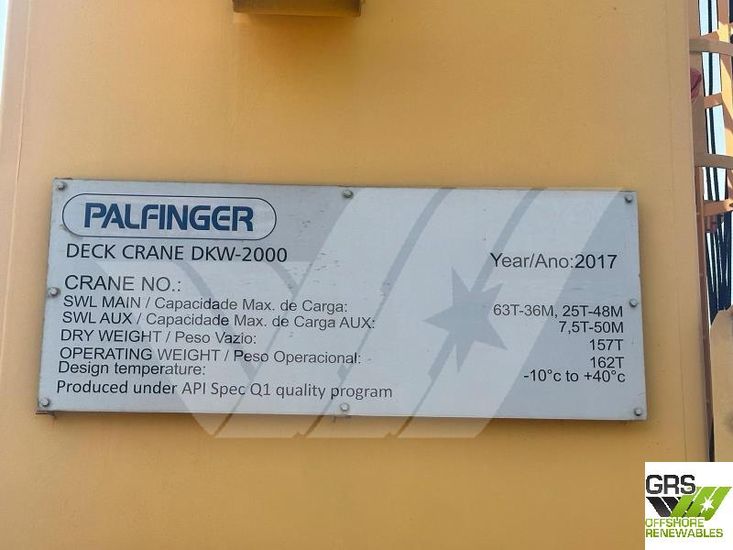

TYPE OF CRANE DKW 2000
Offshore Wire Luffing Electro Hydraulic Pedestal Crane
PRIME MOVER Electro-Hydraulic
ENVIRONMENT High humidity
DESIGN TEMPERATURE
Design temp -10°C - +40°C.
Crane design temperature is in accordance with class
requirements for worldwide service.
AREA CLASSIFICATION
Crane designed for Safe Zone.
Electrical equipment on boom tip designed for Hazardous
Area – Zone 2 IIA T3
CERTIFICATION
- Makers Certificate.
- ABS Certificate for complete crane.
- API monogram.
- INMETRO for Explosion proof electrical components
FEM CLASSIFICATION Machinery groups: M4 - L2 – T4
Appliance group: A4 - Q2 - U4
DESIGN RULES
- API 2C Rules for offshore crane 7th edition
- API Spec 9A
- ABS Classification of Drilling Systems 2011
- ABS Guide for Certification of Lifting Appliances

MAIN WINCH
SWL at MAX OUTREACH
(ONBOARD LIFTS – Cv=1,4) 63T / 35M
SWL at MAX OUTREACH
(ONBOARD LIFTS – Cv=1,4) 25T – 48M
MAX OUTREACH 48M
MIN OUTREACH 7,0M
FALLS for Internal Lifts 3
FALLS for Offshore Lifts 3
HOOK TRAVEL 81 M (*)
HOOK SPEED MAIN HOIST, STEPLESS CONTROL
FULL LOAD 3 FALLS, 63T
EMPTY HOOK 3 FALLS 0-18 M/MIN
0-18 M/MIN
FULL LOAD 2 FALLS,42T
EMPTY HOOK 2 FALLS
0-27 M/MIN
0-27 M/MIN
FULL LOAD 1 FALLS, 21T
EMPTY HOOK 1 FALLS
0- 54 M/MIN
0- 54 M/MIN

AUX WINCH
SWL 7,5 T
SWL MANRIDING 1,0 T
MAX OUTREACH 50 M
MIN OUTREACH 10M
FALLS 1
HOOK TRAVEL 81 M(*)
HOOK SPEED AUX HOIST, STEPLESS CONTROL FULL LOAD 0-60 M/MIN

SLEWING
SLEWING SECTOR LIMITED (YARD TO SUPPLY INFO) 360 DEG
SLEWING SPEED, STEPLESS CONTROL 0-0,5 RPM

LUFFING
LUFFING TIME (from Max radius to Min radius),
STEPLESS NO LOAD 100 SEC

ELECTRIC DATA
MAIN ELECTRIC SUPPLY 440V – 60Hz – 3PH
OUTPUT POWER RATING S1-100%
2x 254 KW
INPUT POWER RATING S1-100%
2x 265,69 KW
MAX MAIN HOIST POWER: APPX 410 KW
MAX LUFFING POWER: APPX 300 KW
MAX SLEWING POWER APPX 300 KW

Built in year 2017

1 PED installed with a max lifting capacity of 63 tons
